BLADERUNNER™
We adapted the Rodale Institute’s Chevron Pattern Blade concept for Australian conditions, creating the BLADERUNNER™ range. The blade is fixed to a barrel with a twisted pitch, ensuring constant contact and pressure with organic material. As the barrel rotates, pressure splits from the centre outwards, delivering positive effects across biomass and vegetation.
EXPLORE BLADE RUNNER™ 3000
EXPLORE BLADE RUNNER™ 4500
EXPLORE BLADE RUNNER™ 6000
EXPLORE BLADE RUNNER™ FLD9000
EXPLORE BLADE RUNNER™ FLD12000
EXPLORE BLADE RUNNER™ FORM 12
OUR PATENTED DESIGN MACHINERY

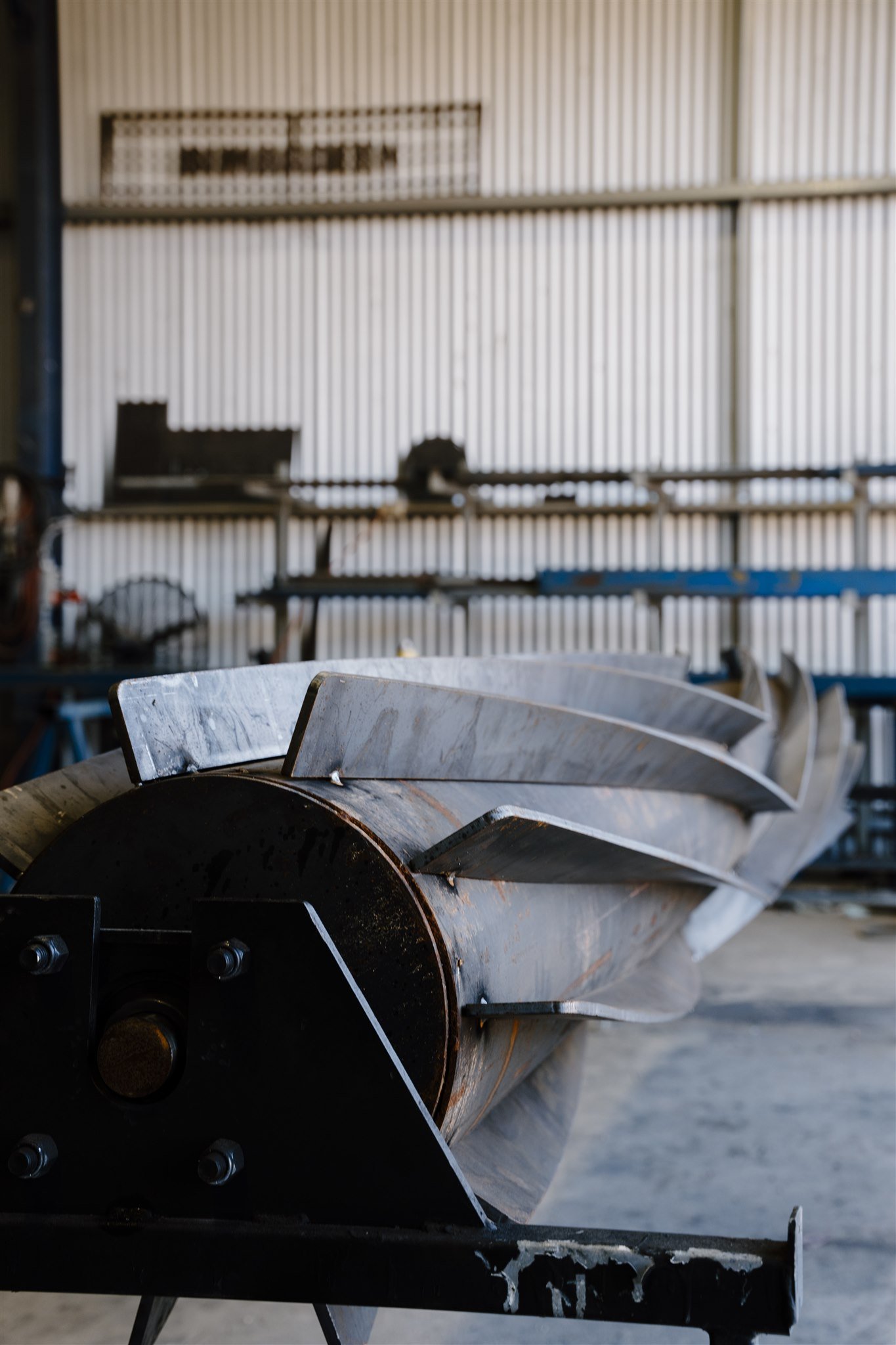

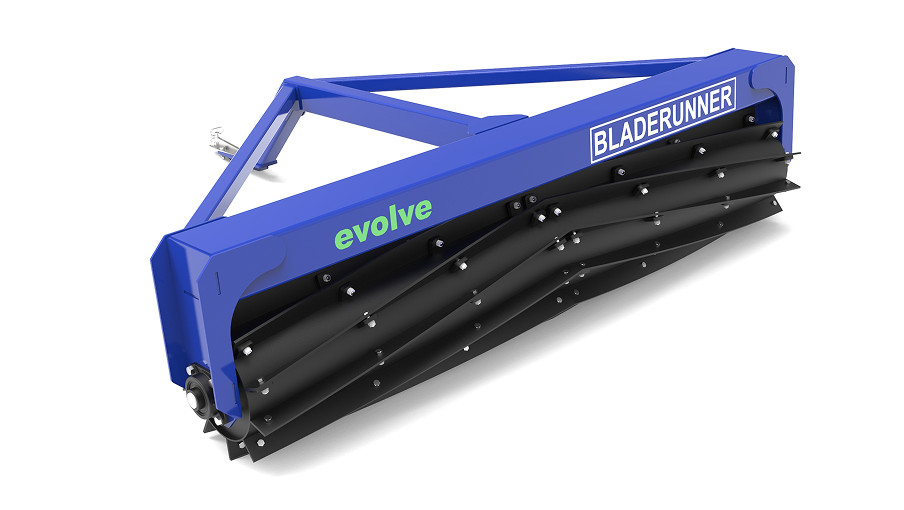

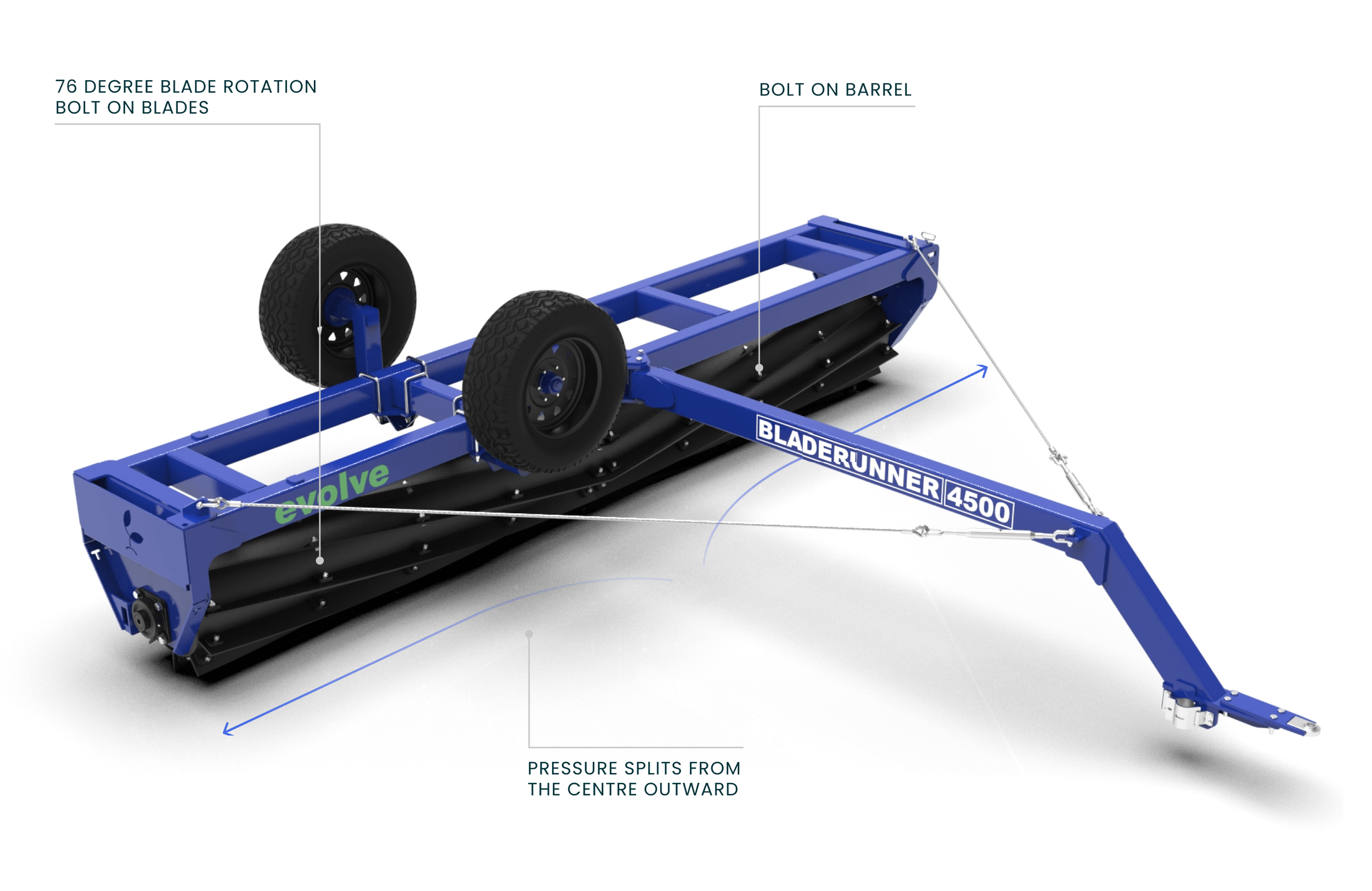

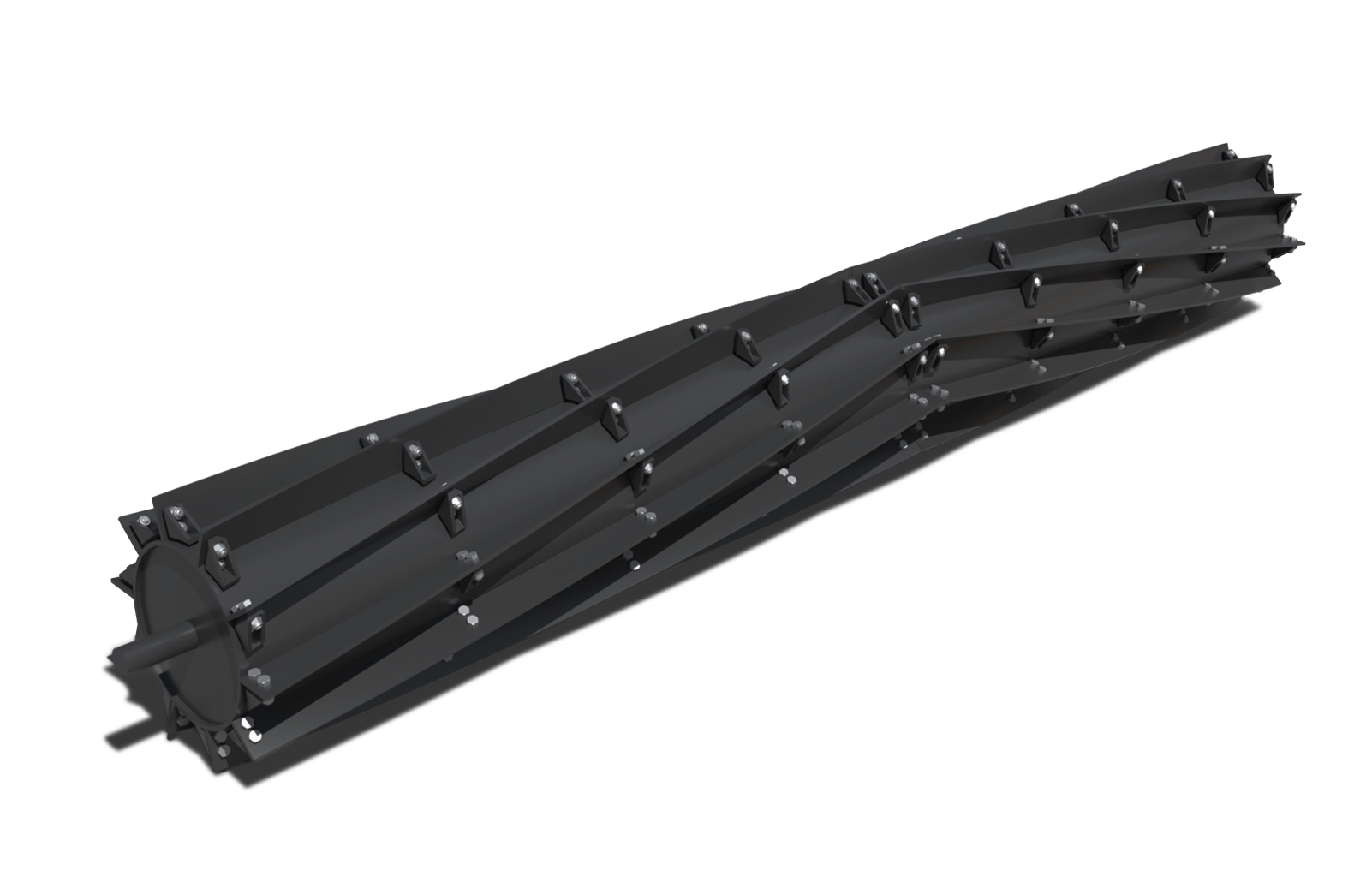

‘BOLT-ON BLADE’ BARREL
All BLADERUNNER™ models now come standard with our upgraded "bolt-on blade", made from Bissalloy 400 hardened steel. This design allows for easy replacement of damaged or worn blades. Simply unbolt the old blade and bolt on the new, extending the life of your machine and reducing maintenance downtime.
Easy blade replacement
The Practical Entry Point

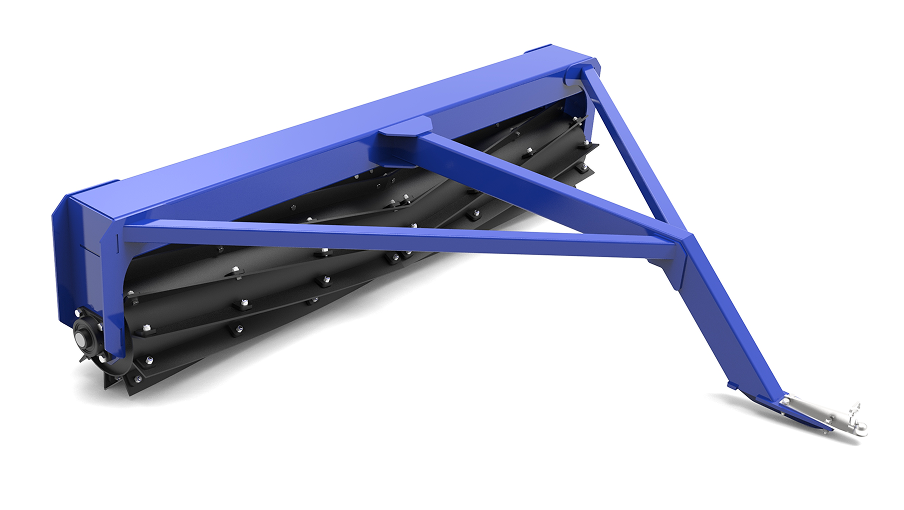

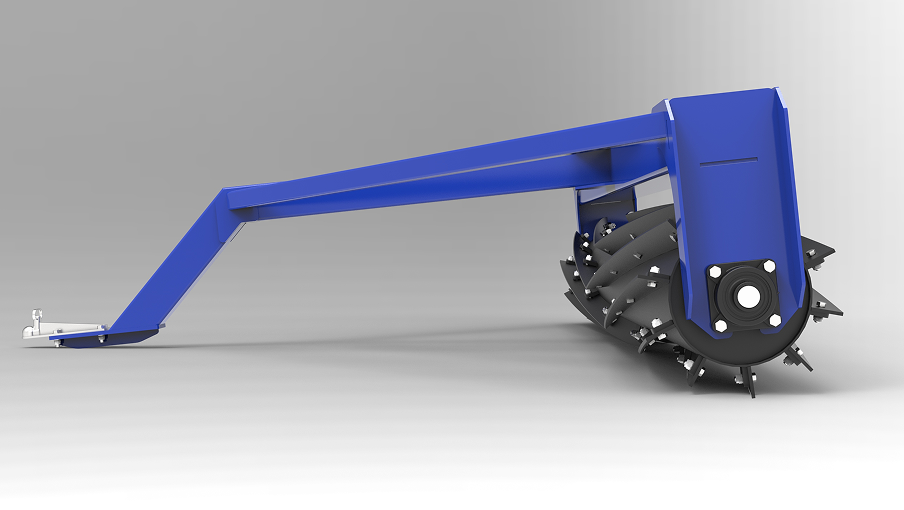

BLADERUNNER™ 3000
Suited to small to medium scale operations
The 3000 is a compact, fixed-drawbar machine designed for operators who need a heavy-duty build on a budget. This model eliminates complex folding and wheel systems to provide a direct, low-maintenance solution for smaller paddocks and tighter access areas.
The 3000 Fixed Drawbar is a straightforward, "hook-and-go" machine, offering the same high-tensile blade performance and frame durability as our larger models at a more accessible price point.
Standard delivery available Australia wide.
-
Blades: Replaceable bolt-on blades made from Bisalloy 400 high-tensile steel.
Frame: Robust 6mm RHS steel construction. Weight: 600kg (Dry) / 1,110kg (With water ballast).
Ballast: Dual-provision water ballast (360kg in the barrel and 150kg in the frame).
Design: Fixed drawbar for maximum strength and simplicity; no wheels or folding mechanisms.
Bearings: Premium greaseable bearings and housings (12-hour service intervals).
The Grab n‘ Go machine

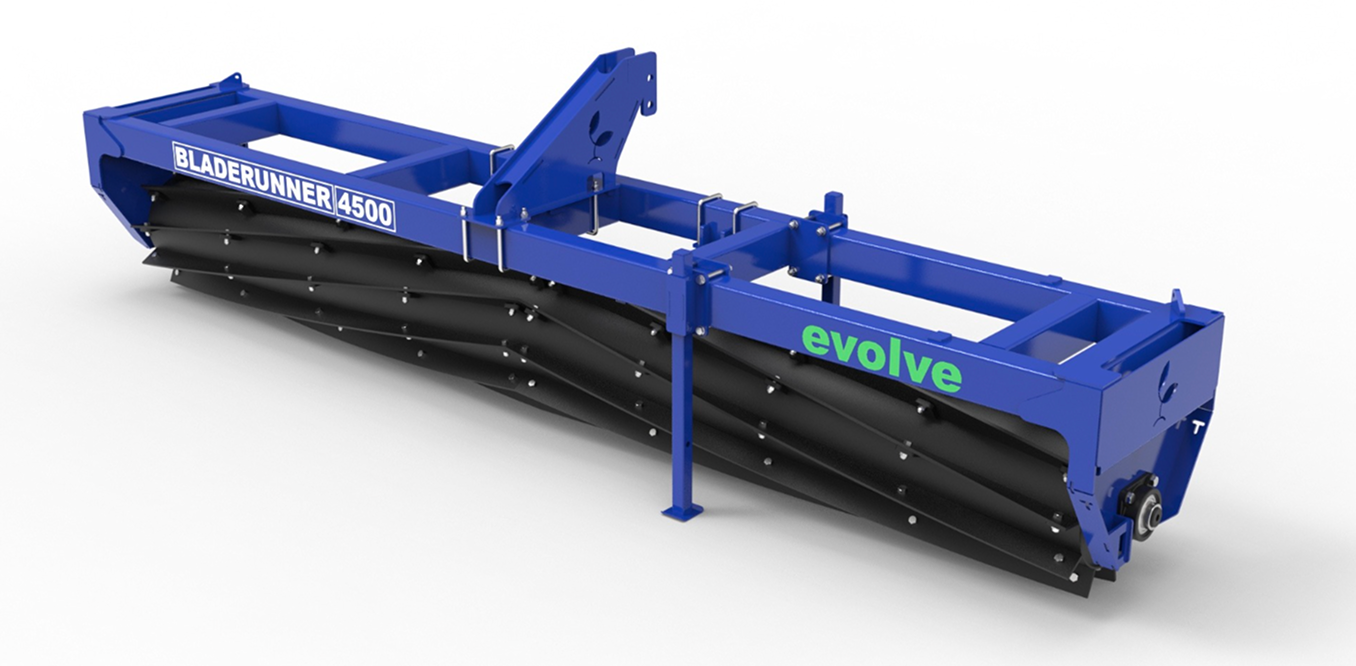

BLADERUNNER™ 4500
Suited to small to medium scale operations
Meet our highly versatile 4500 model, engineered to function with both tractor or 4WD vehicles. Compact yet mighty, this model folds down to 1.6m for easy towing and storage.
Using the provided hydraulic lifting jack, simply hitch, tow, and transform to 'field mode' in just 5 minutes. The 4500-H hydraulic model uses hydraulics to lift wheels, convert to "field mode" fold out drawbar and roll away.
Featuring robust 6mm RHS frame, water ballast provision (1.7ton with water), top-tier bearings, and easy setup taking only minutes, the 4500 stands as the optimal 'grab-and-go' machine for various applications.
Standard delivery available Australia wide.
BLADERUNNER™ 4500 Options Available

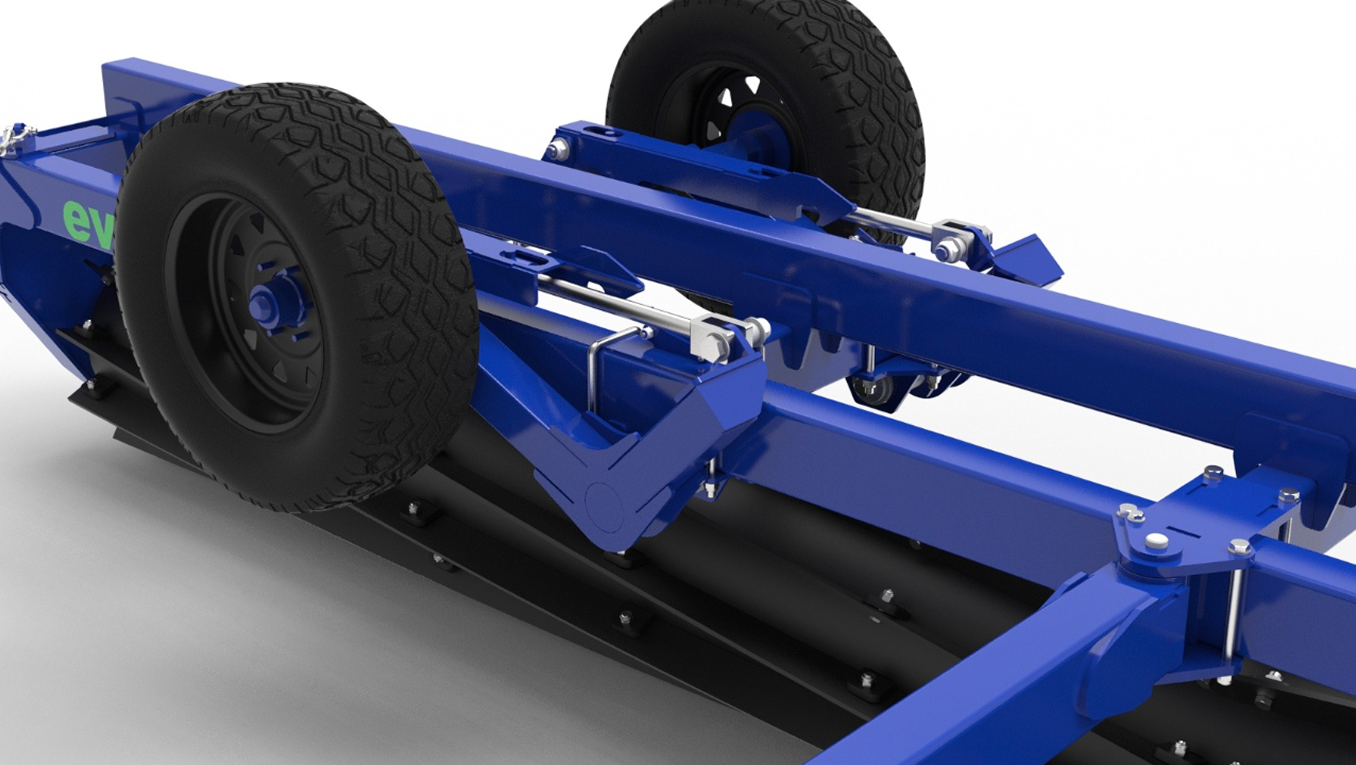

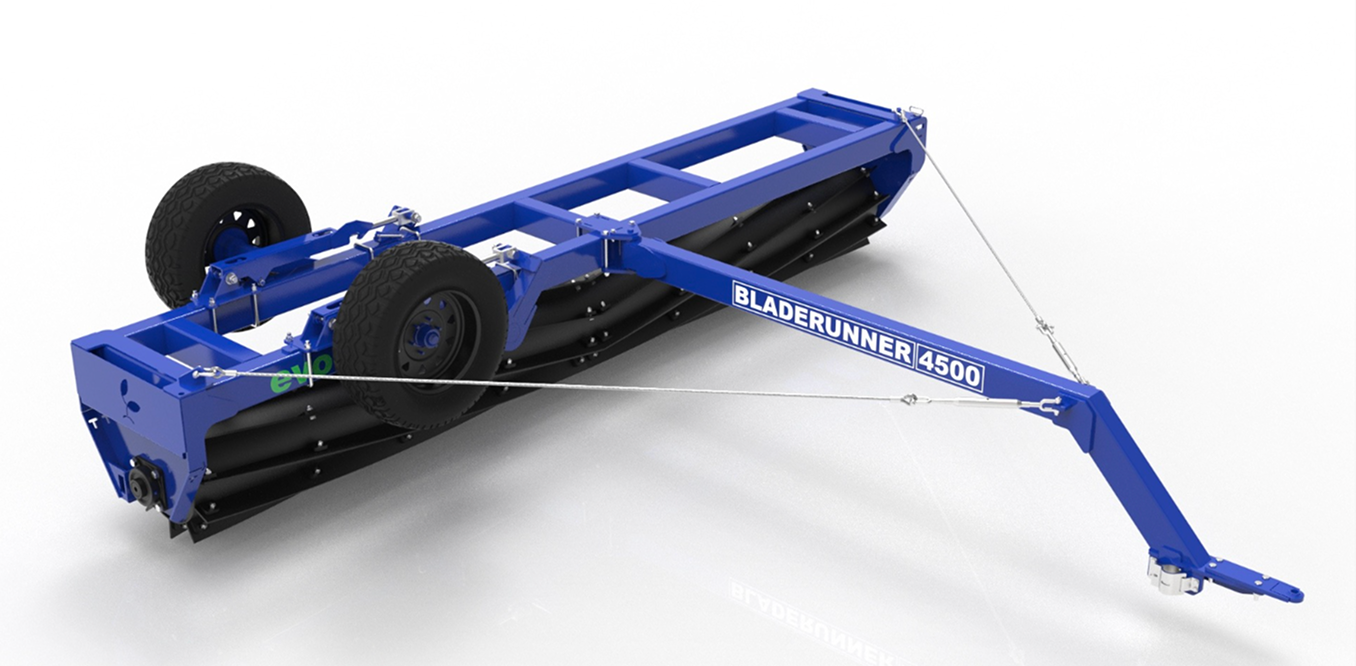

BLADERUNNER™ 4500 HYDRAULIC

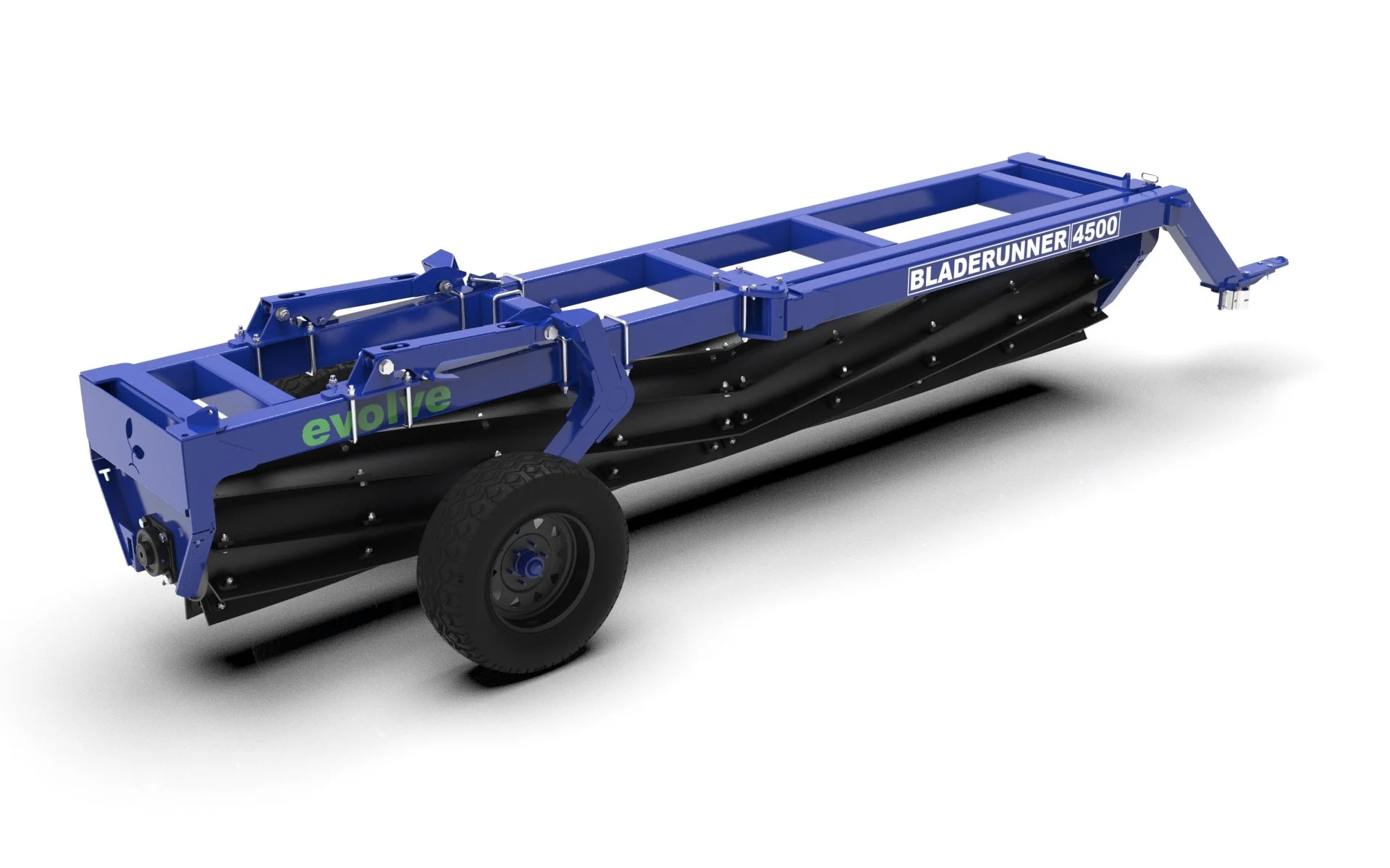

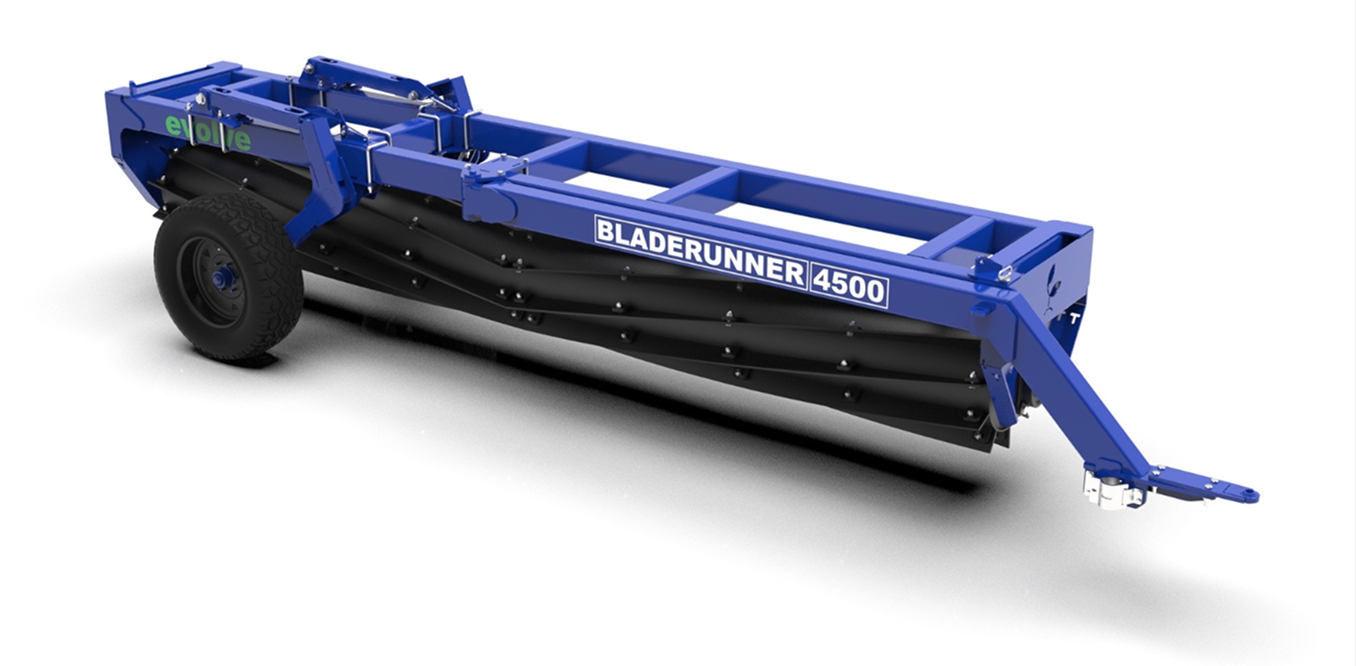

BLADERUNNER™ 4500 HYDRAULIC IN TOW MODE
The 4500 hydraulic model in tow mode. Requires a tractor for setup.

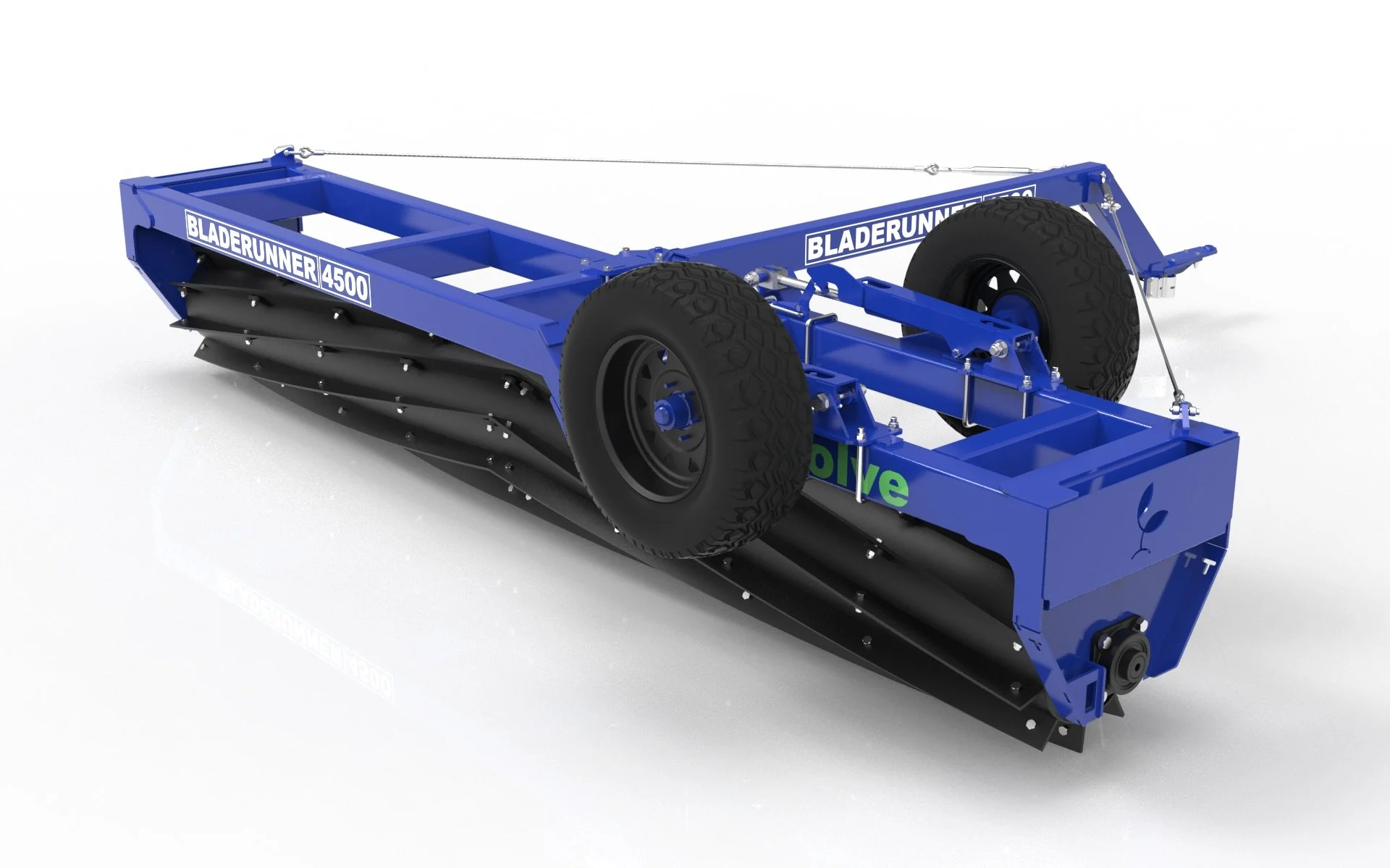

BLADERUNNER™ 4500 HYDRAULIC IN FIELD MODE
The 4500 hydraulic model in tow mode. Requires a tractor for setup.

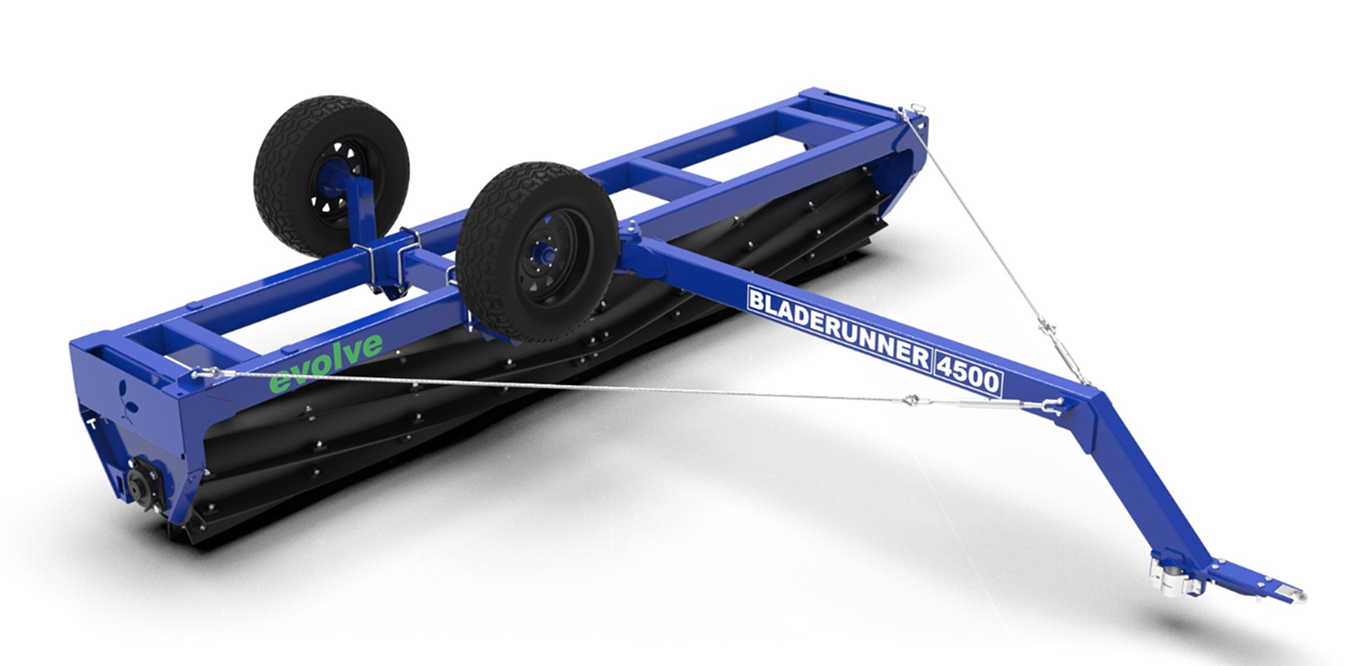

BLADERUNNER™ 4500

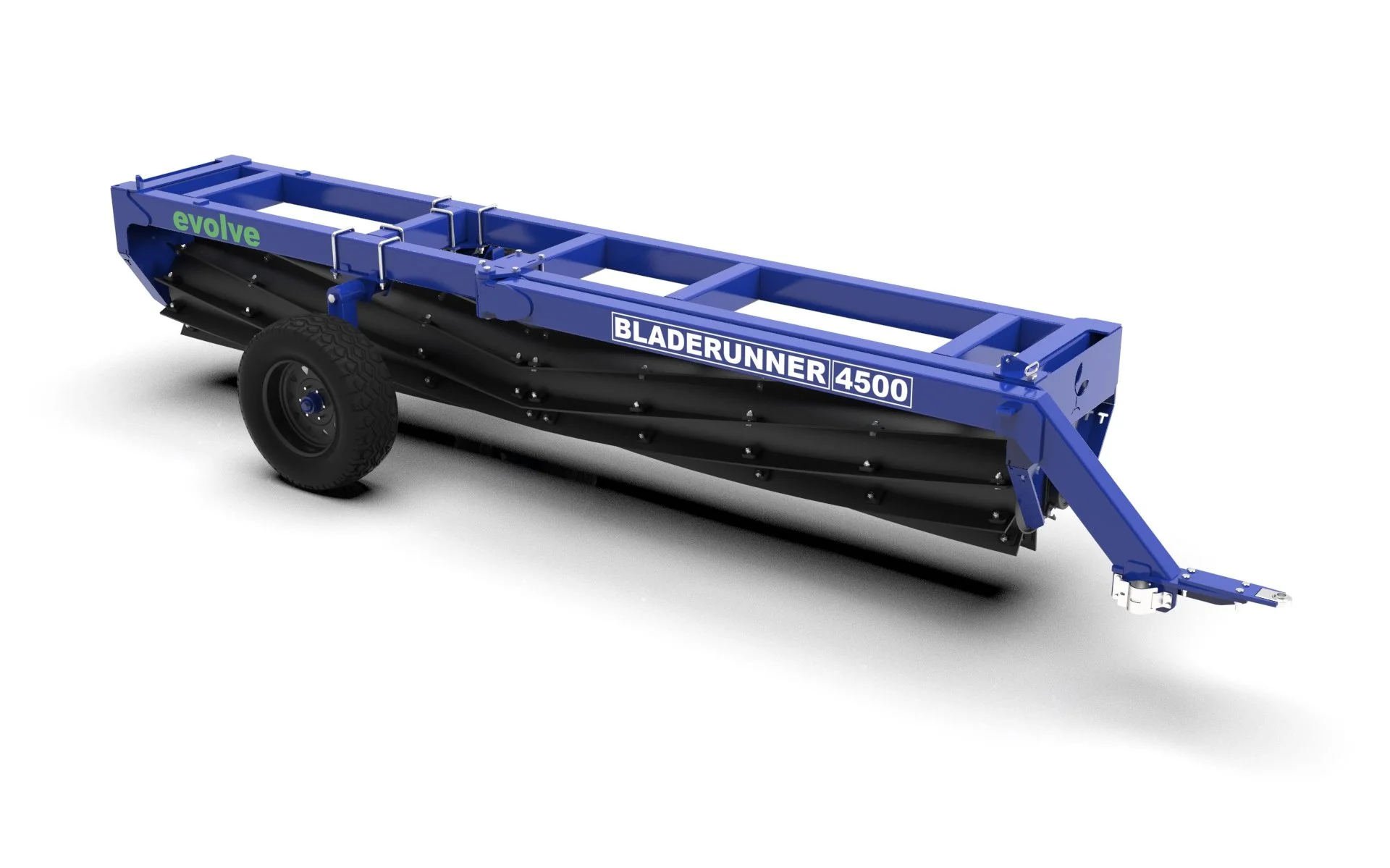

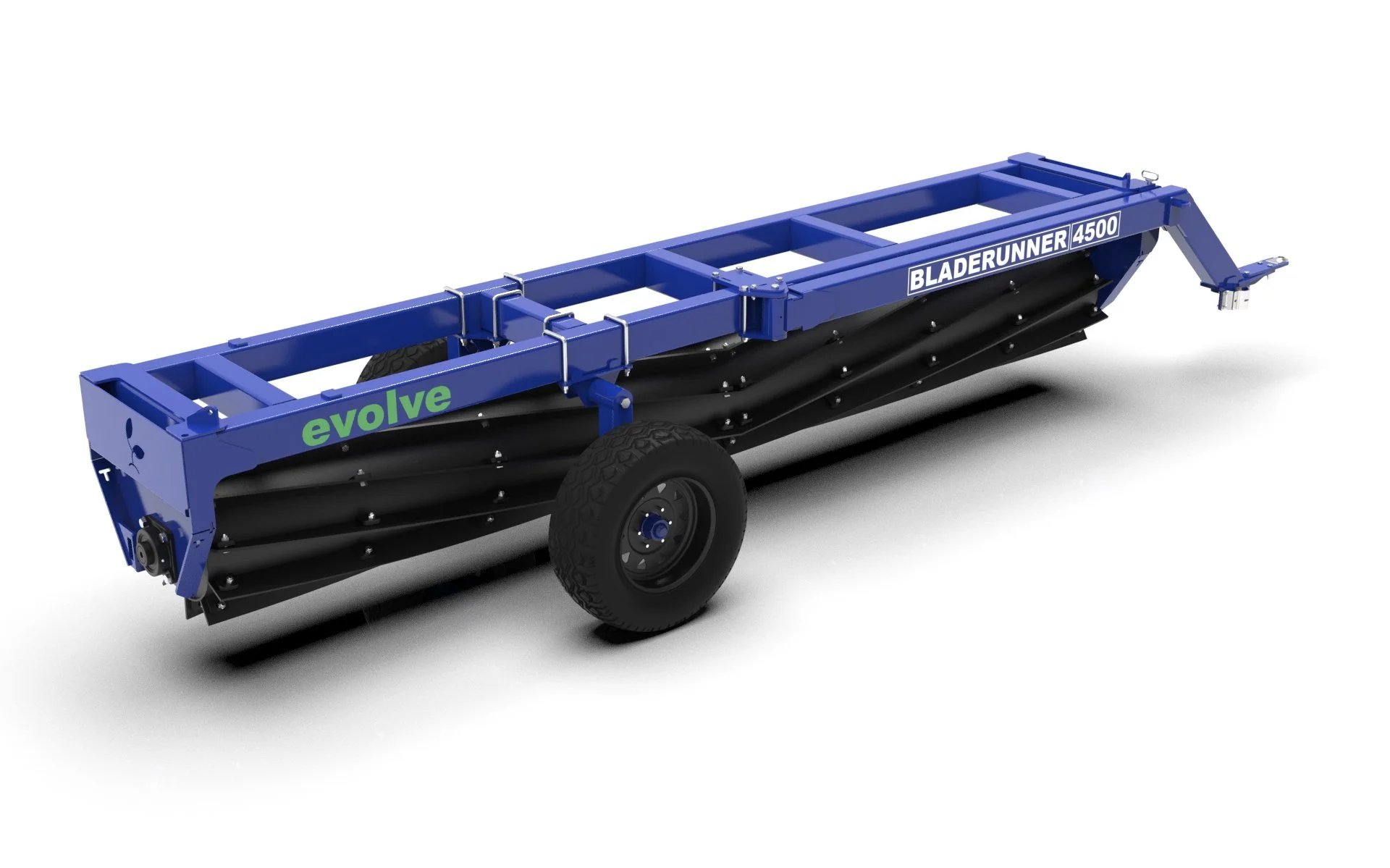

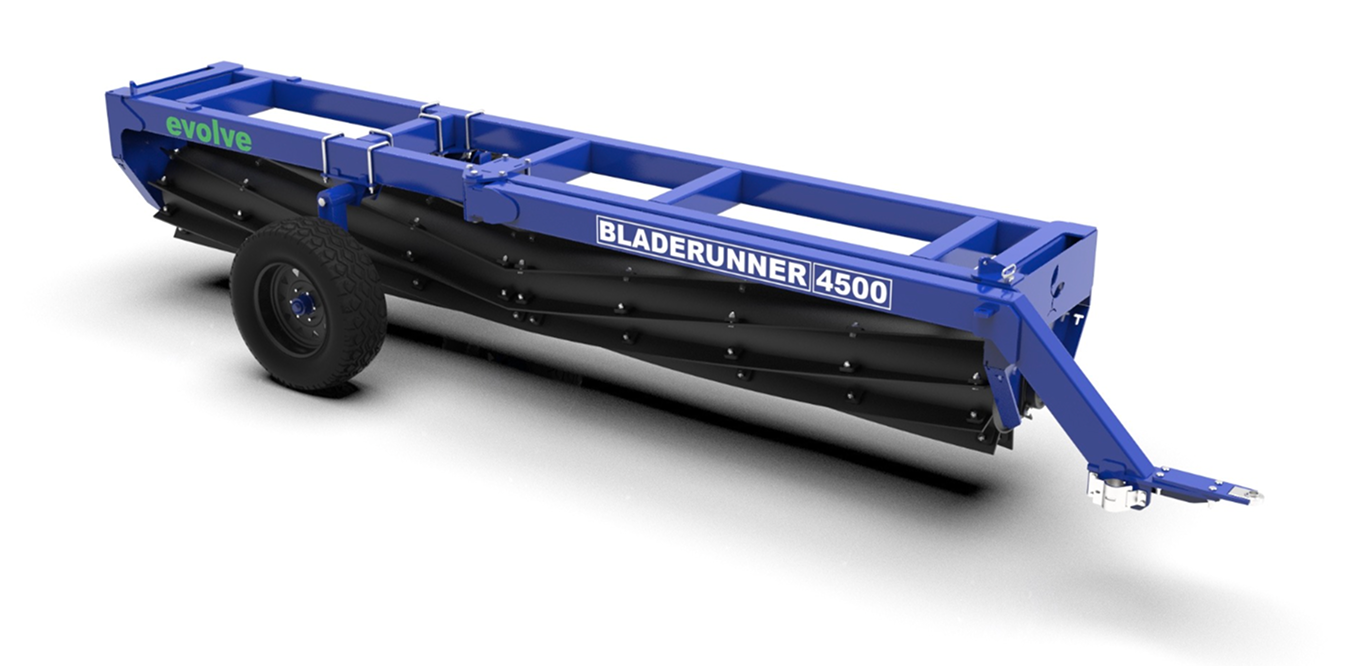

BLADERUNNER™ 4500 IN TOW MODE
The 4500 base model in tow mode, suitable for towing behind a 4WD or tractor.

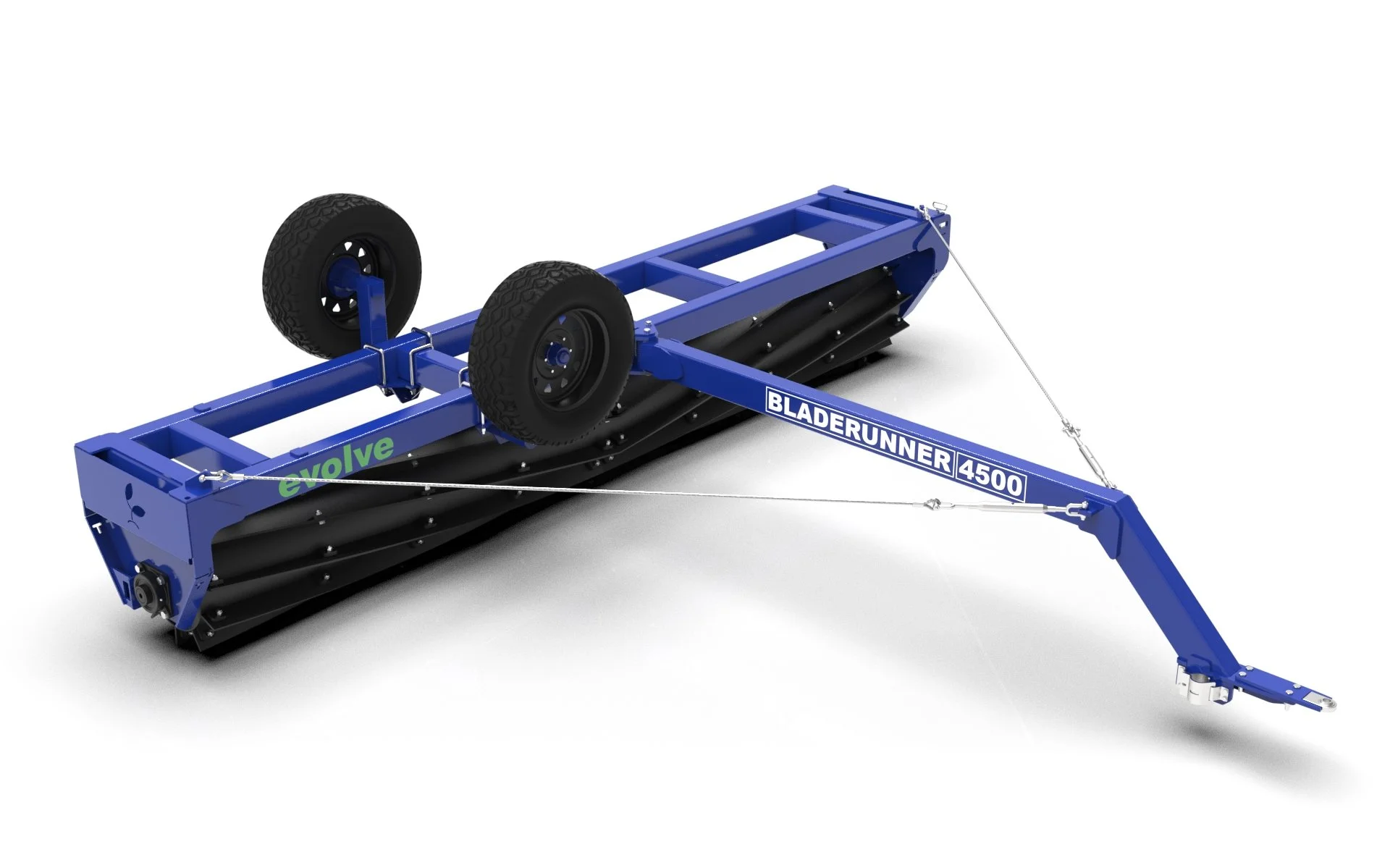

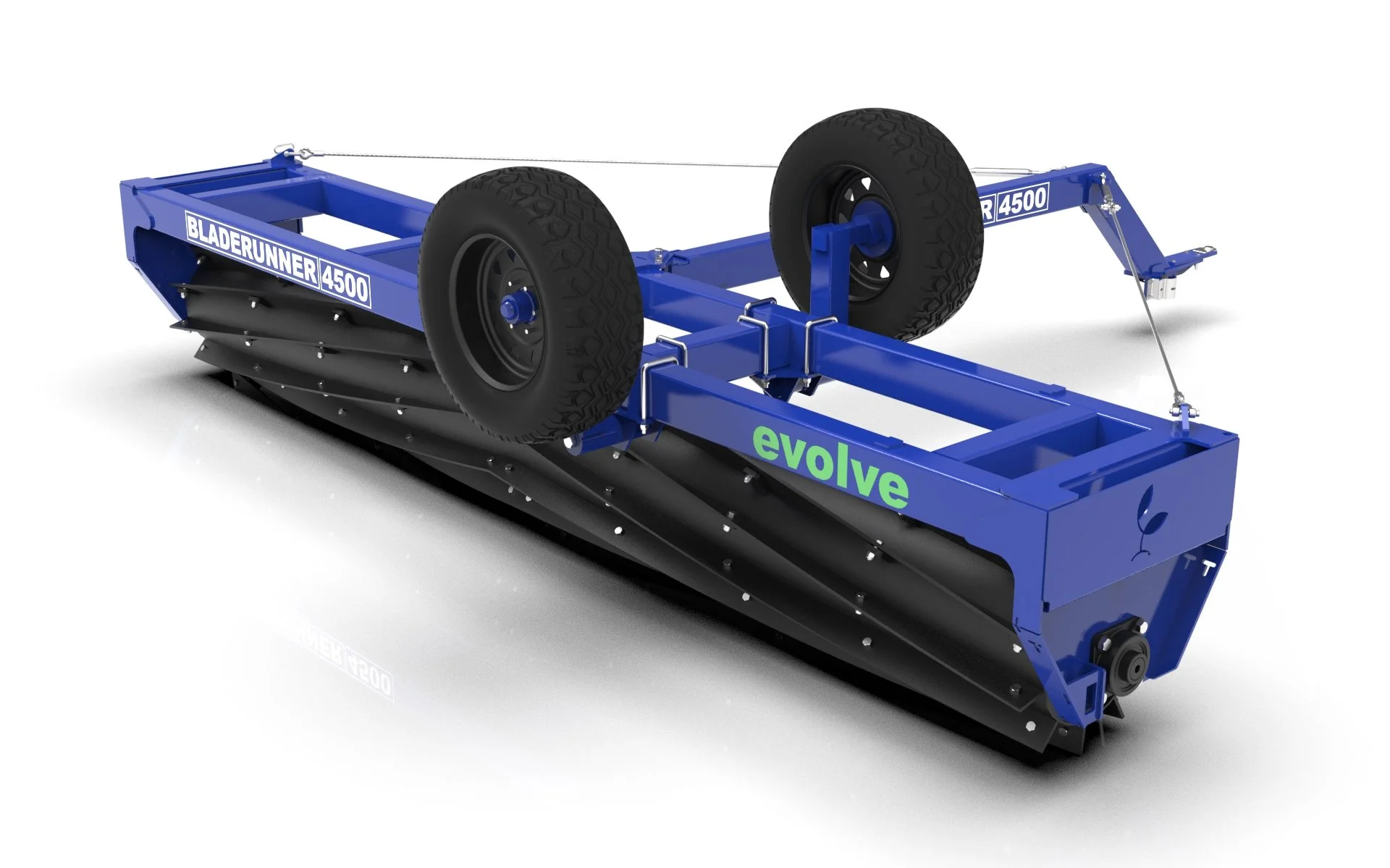

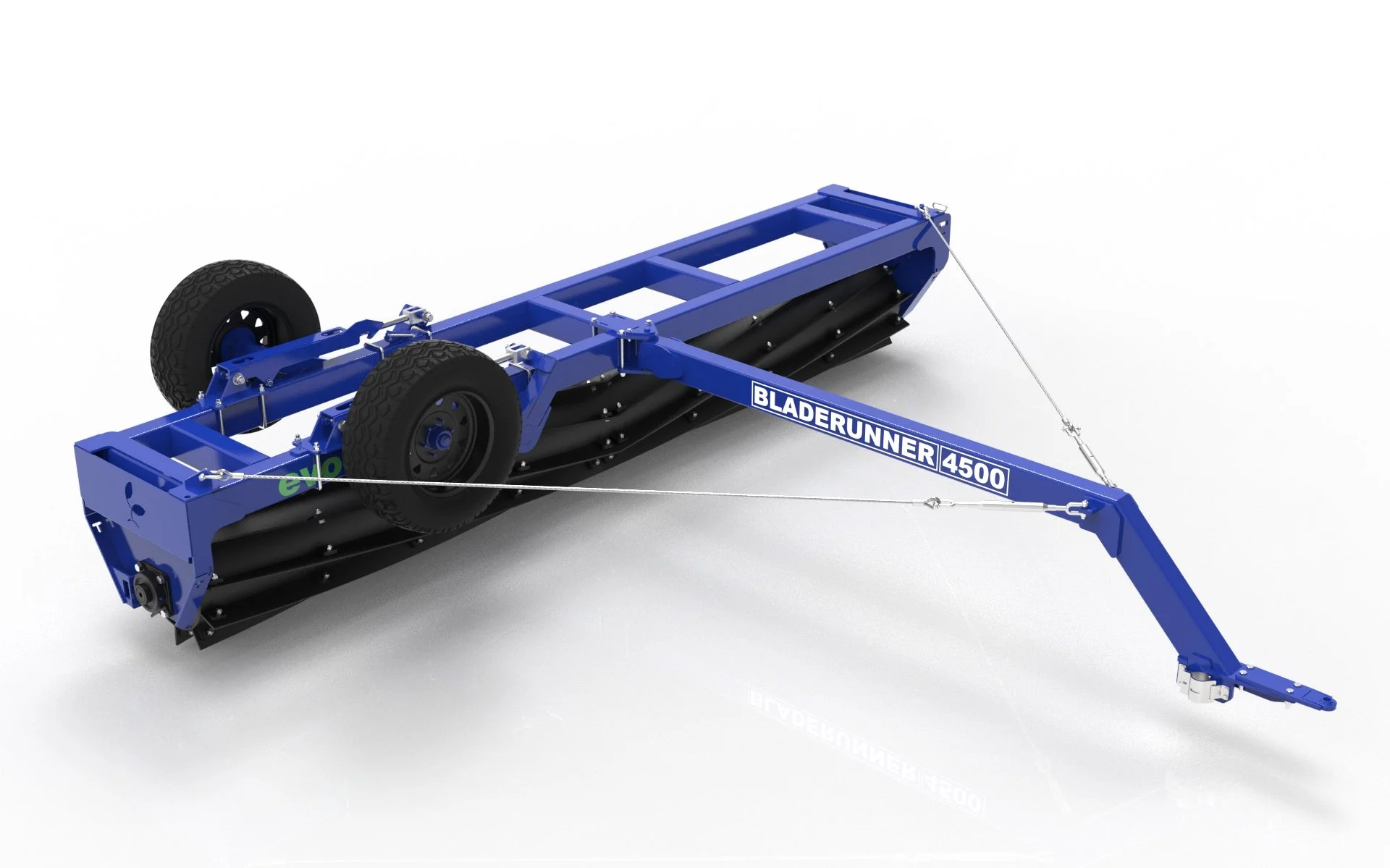

BLADERUNNER™ 4500 IN FIELD MODE
The 4500 base model in field mode, suitable for towing behind a 4WD or tractor.

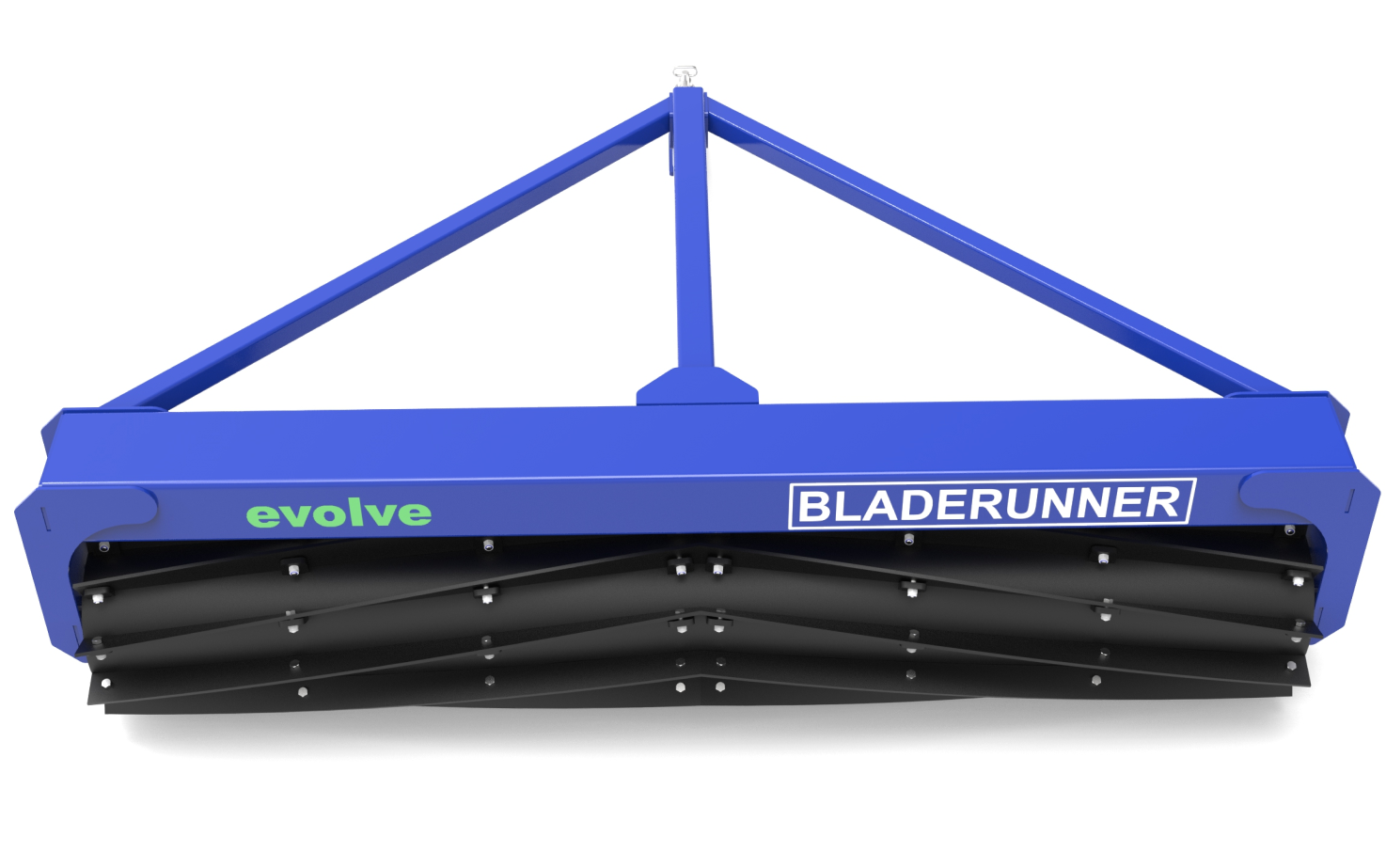

BLADERUNNER™ 4500 3PL

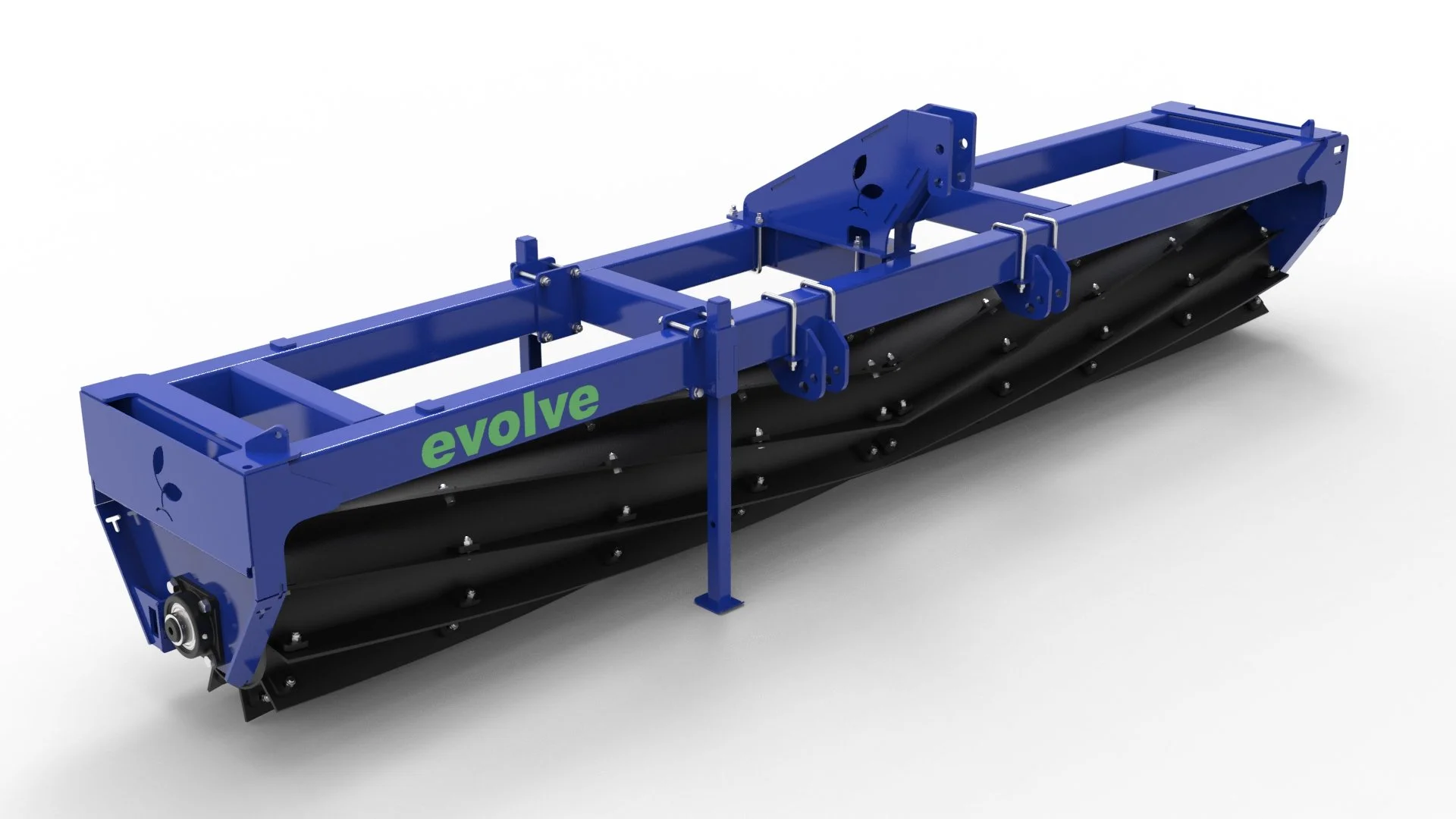

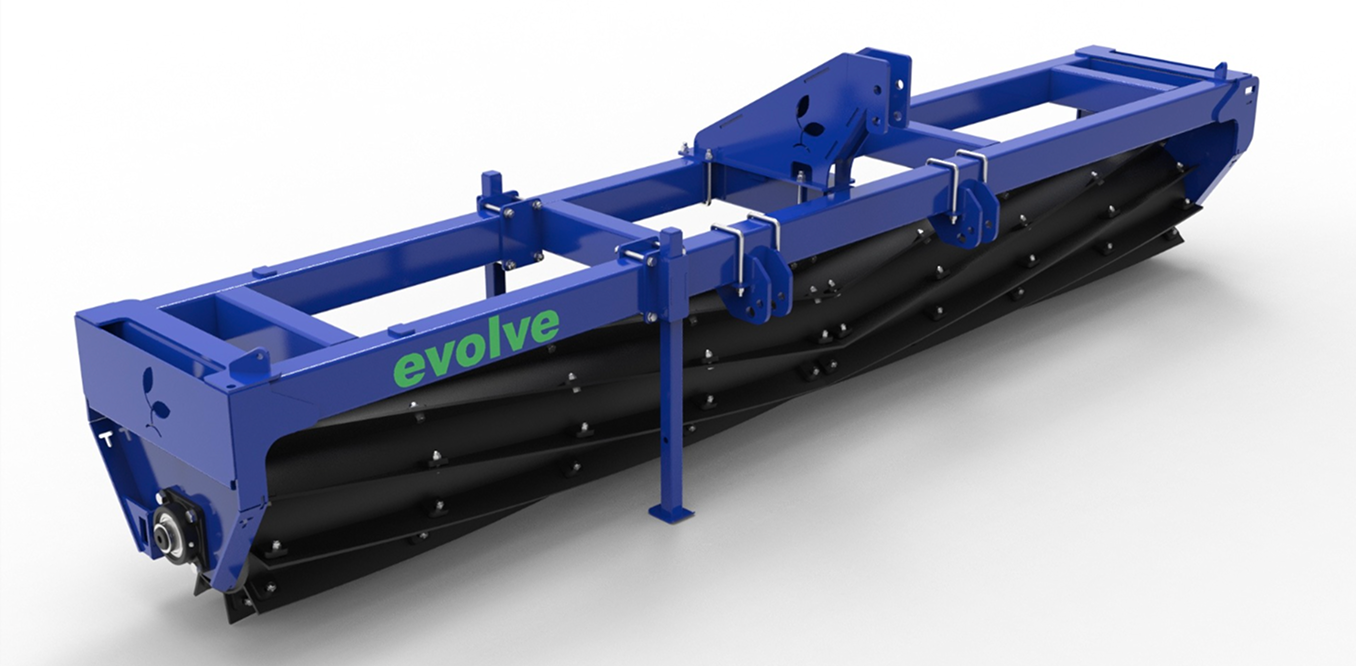

BLADERUNNER™ 4500 3 POINT LINKAGE
The 4500-3PL available in Cat 1 and Cat 2 hitches.
BLADERUNNER™ 4500 3 POINT LINKAGE
The 4500-3PL available in Cat 1 and Cat 2 hitches.
Efficiency, redefined.

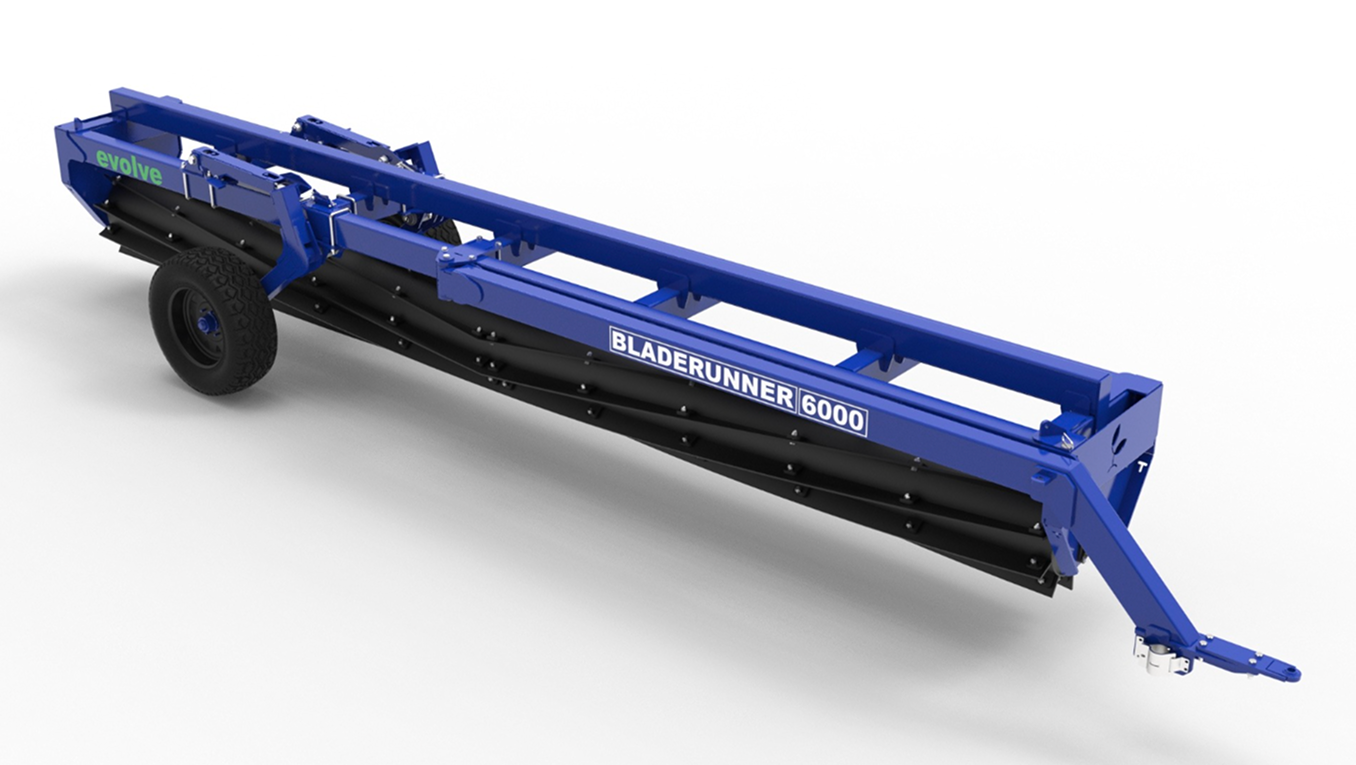

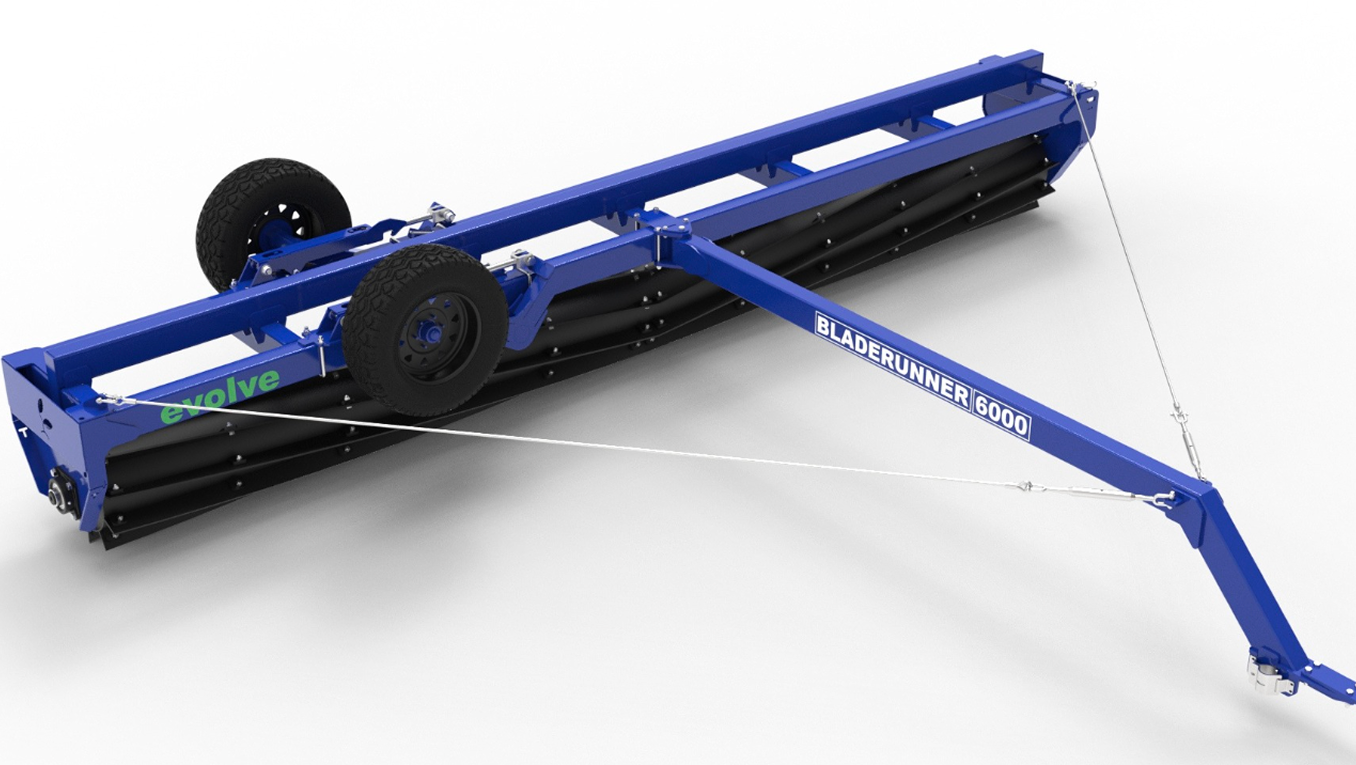

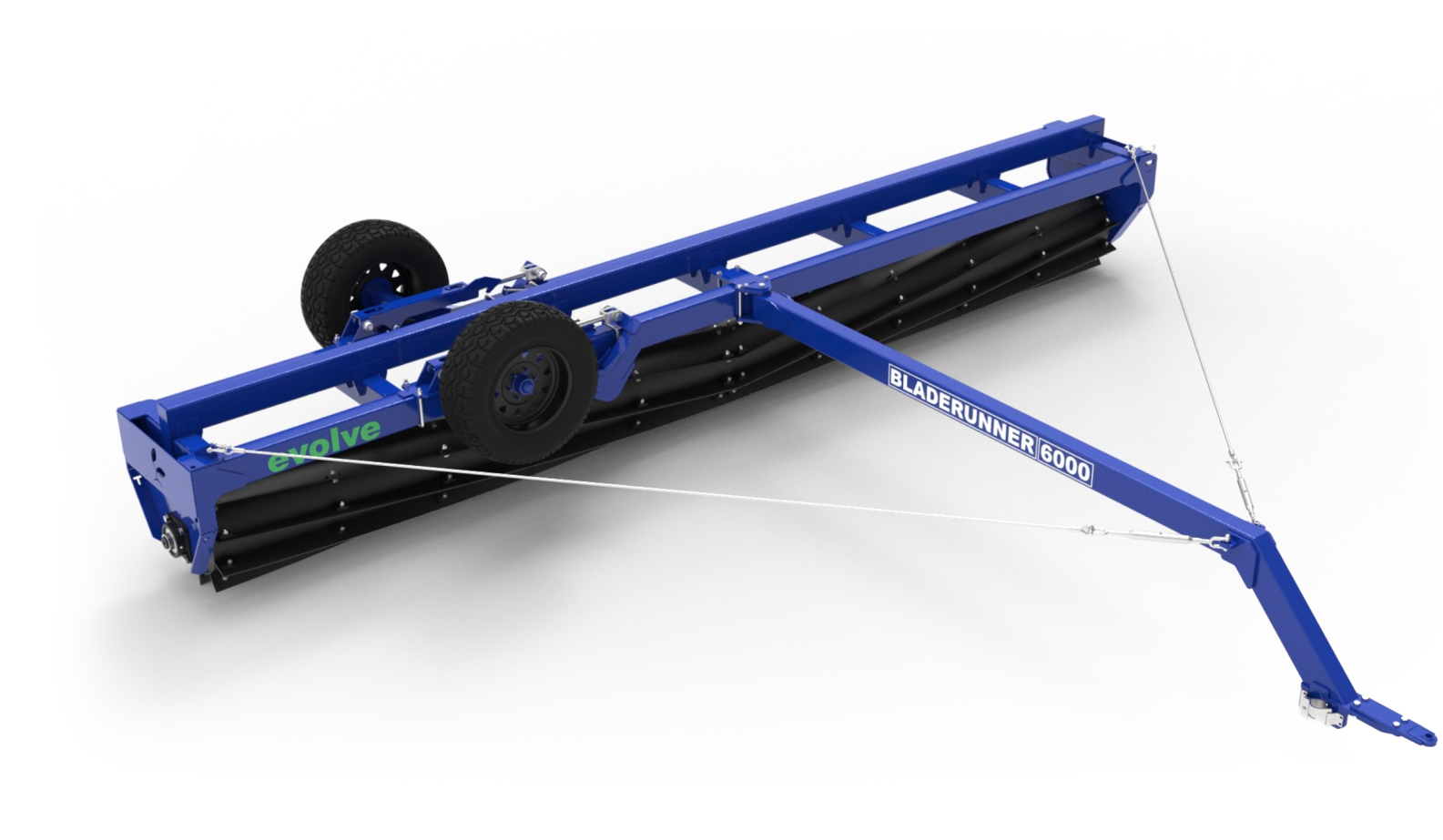

BLADERUNNER™ 6000
Suited to mid-scale operations
Introducing the 6000H, a modest 6-meter wonder that blends simplicity with top-notch performance. An upgrade from our 4500H series, offering the same great features but machine coverage, meaning less time in the tractor seat.
This hydraulic model folds down to just 1.6 meters for easy towing and storage. Use the foot jack to hitch up, tow to the paddock, switch to "field mode" with the hydraulic remotes, unfold the drawbar, and you're good to go.
This product is made to order.
Standard delivery available Australia wide.
-
Robust 6mm RHS frame
Weight 1.8 tons
Bung for water ballast (additional 720KGS)
Top of the line bearings and housings - greaseable 12 hrs.
Set up takes 5 minutes
Upgraded Barrel (Standard)
Efficiency meets manoeuvrability

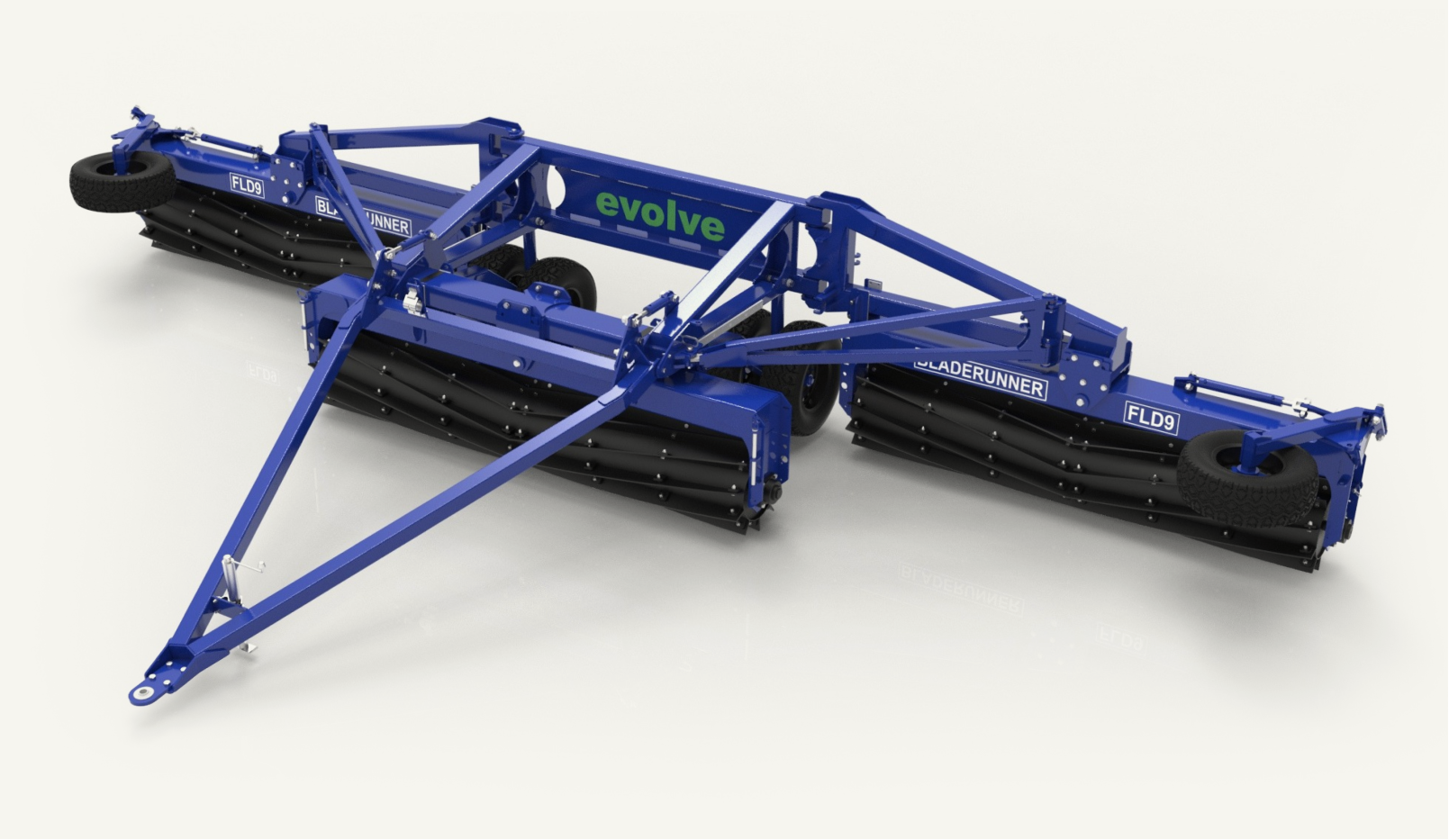

BLADERUNNER™ FLD-9
Suited to large-scale grazing and cropping
Introducing our BLADERUNNER™ FLD-9, the perfect middle ground for large-scale grazing and cropping operations wanting wide coverage without the full footprint of the FLD-12.
Offering an impressive 9.2m swath width, this model folds down to just 3.5m for easy, unescorted road towing.
Built with the same engineering excellence as our flagship FLD-12, the FLD-9 delivers exceptional ground contact, adaptability across varied terrain, and practical ease of use in the paddock.
This product is made to order.
Standard delivery available Australia wide.
-
Weight and Frame Design
Weighs approx. 6 tons, designed for balanced weight distribution, manoeuvrability, and adaptability.Field Adaptability
Hydraulic lift at field ends for quick, efficient turnarounds.Effortless Setup and Pack-up
Switch from tow to field mode in minutes.All FLD-9 models feature our bolt-on blade barrel for easy maintenance and extended machine life.
The first of its kind in the world

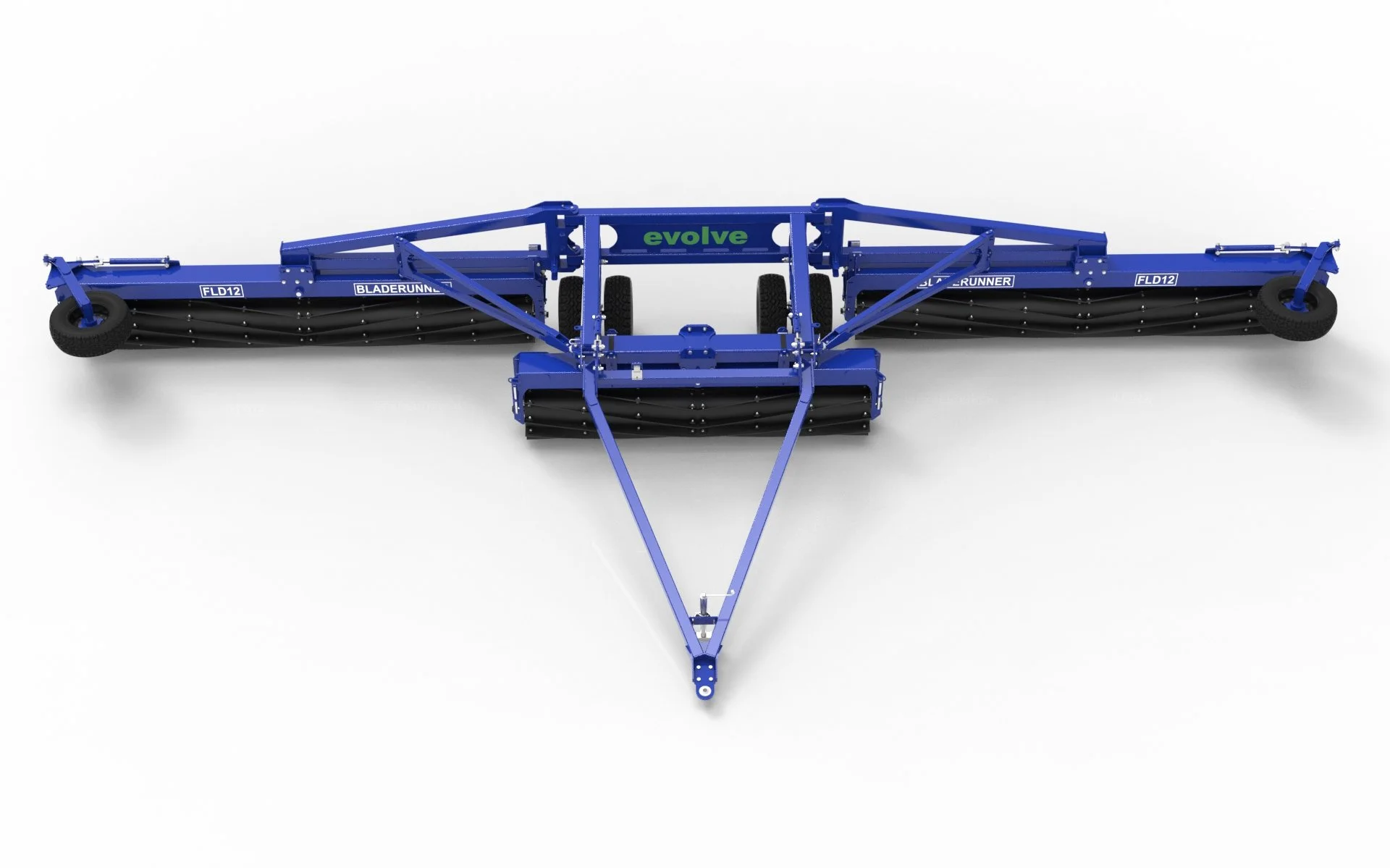

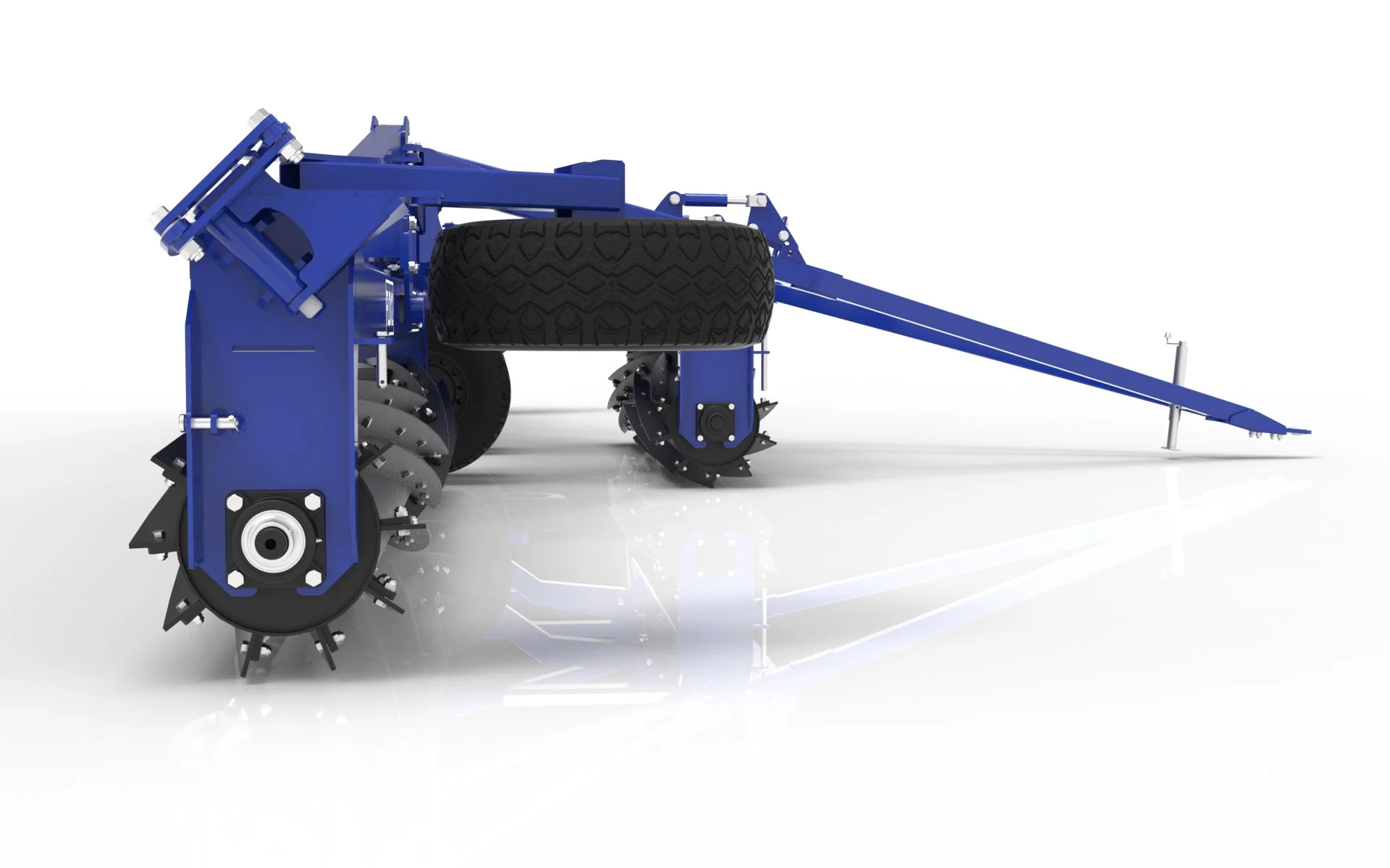

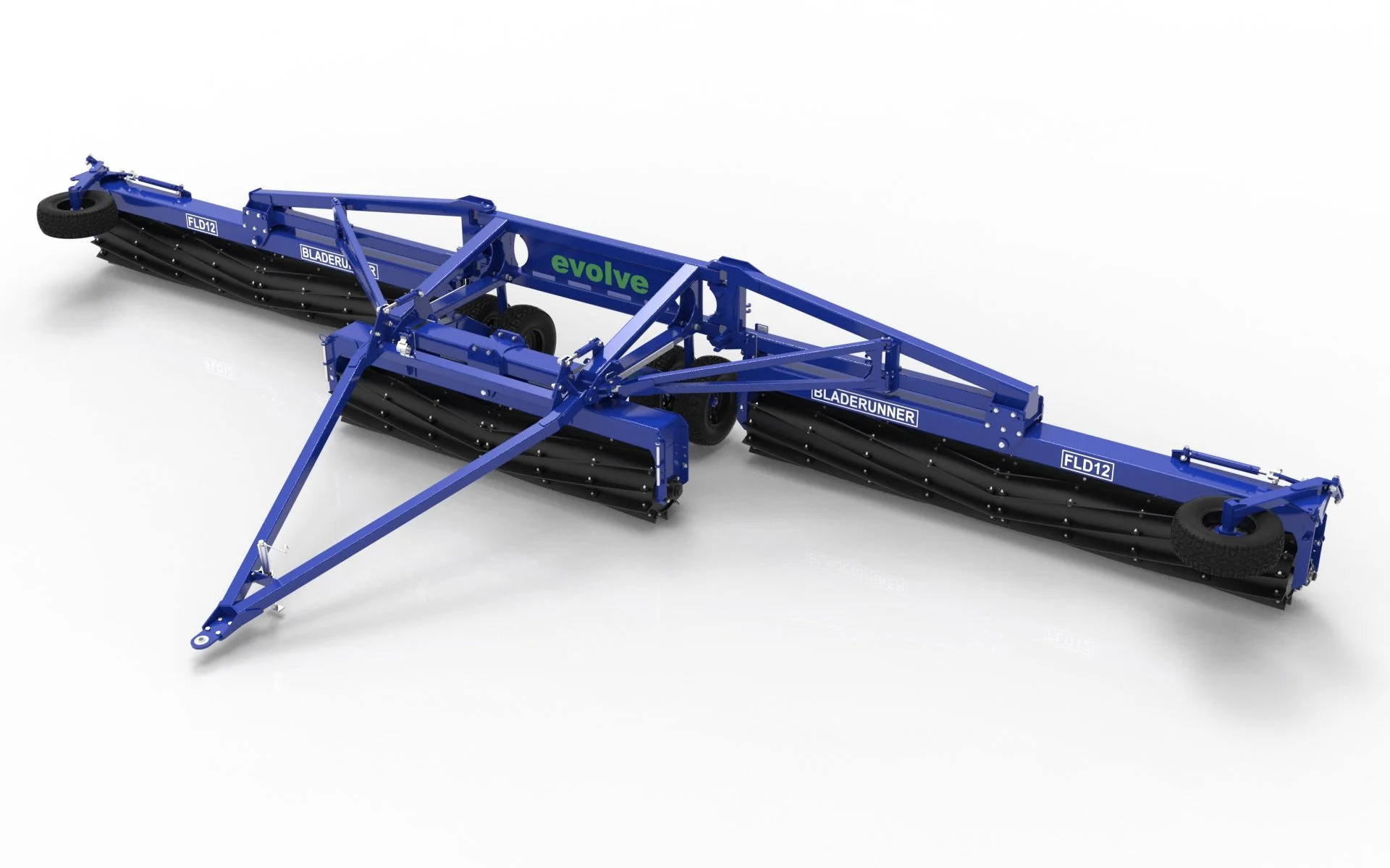

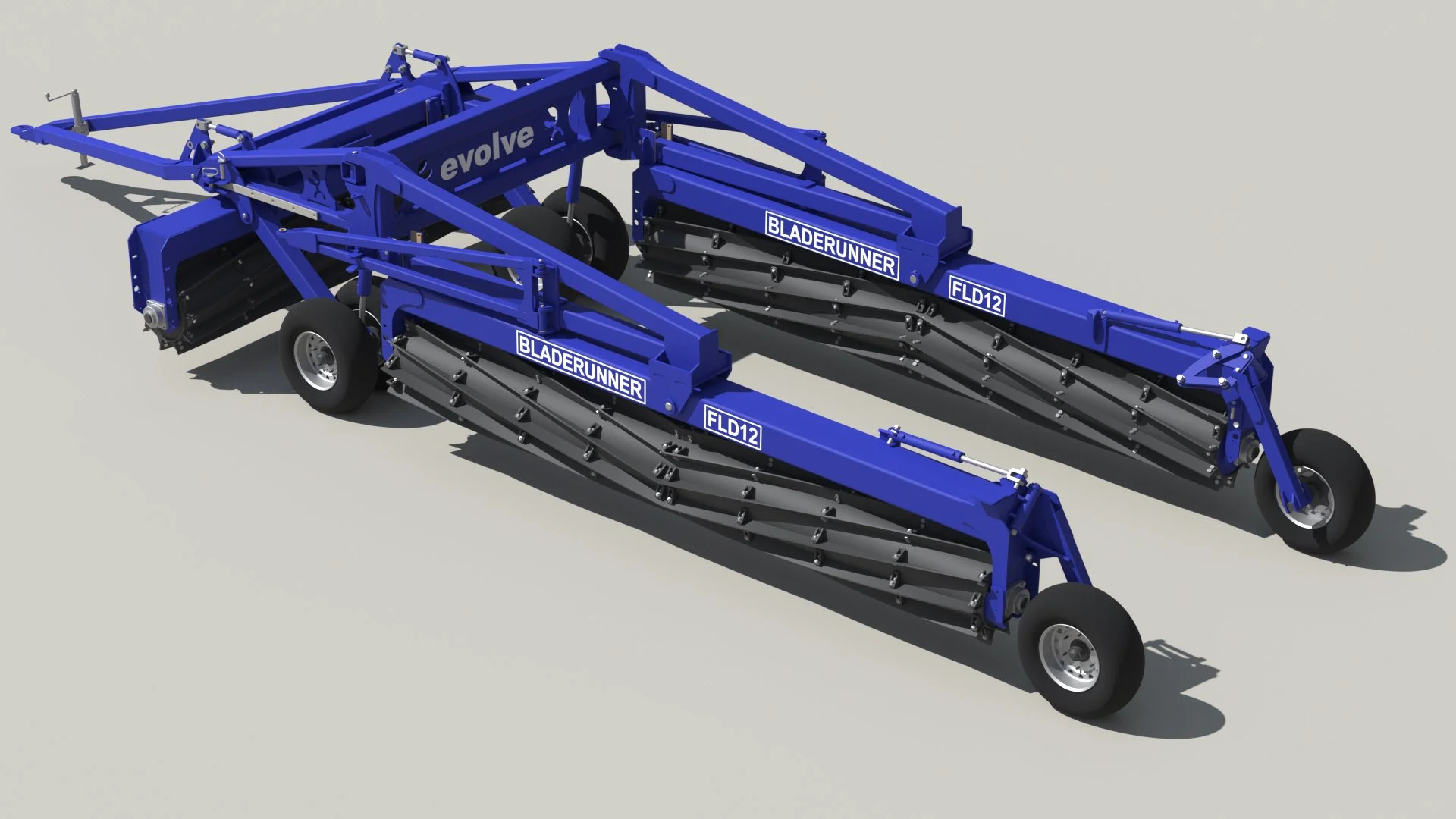

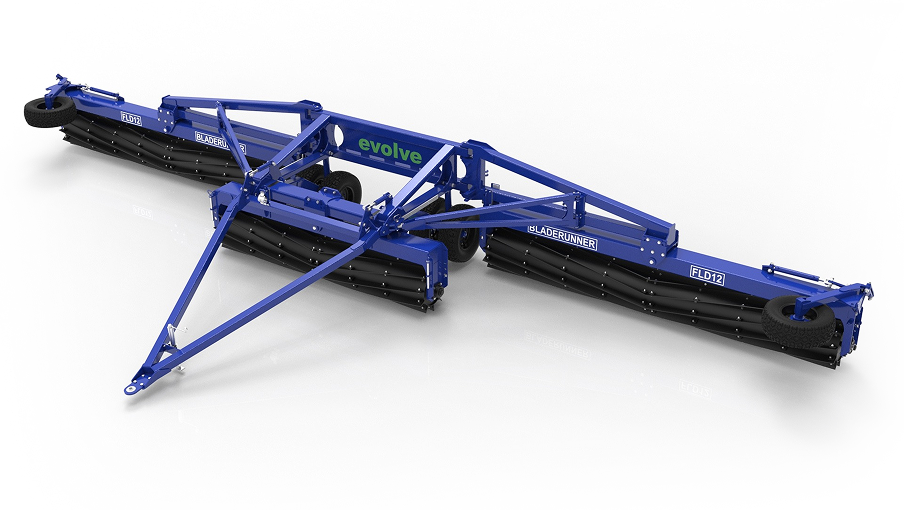

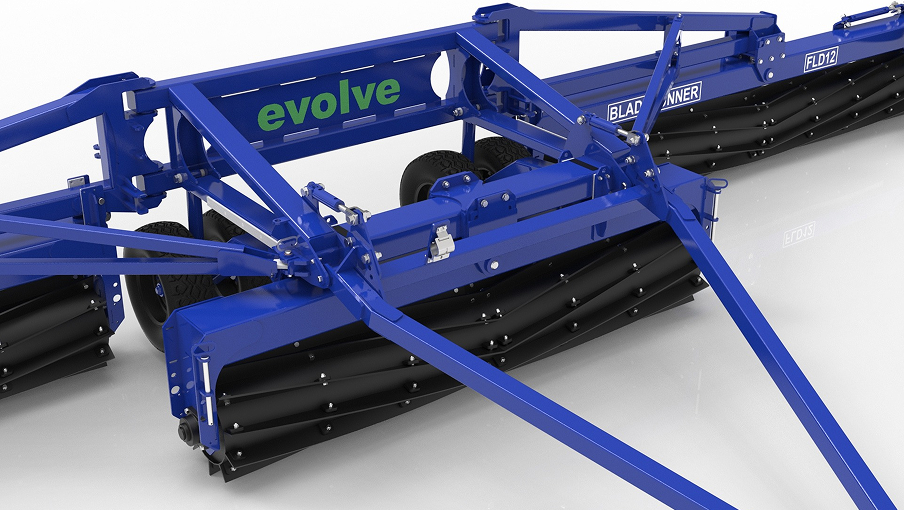

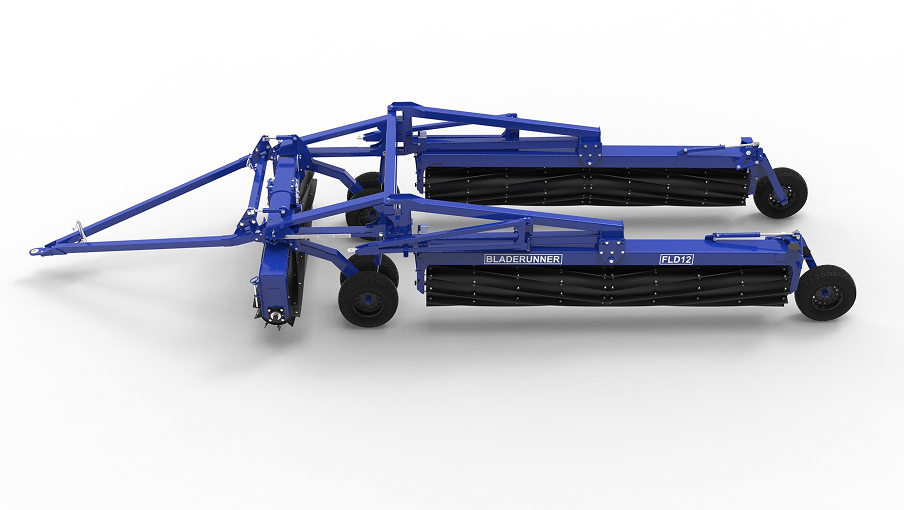

BLADERUNNER™ FLD-12
Suited to broadacre agriculture
Introducing our BLADEDERUNNER™ FLD-12, a remarkable innovation set to redefine industry standards.

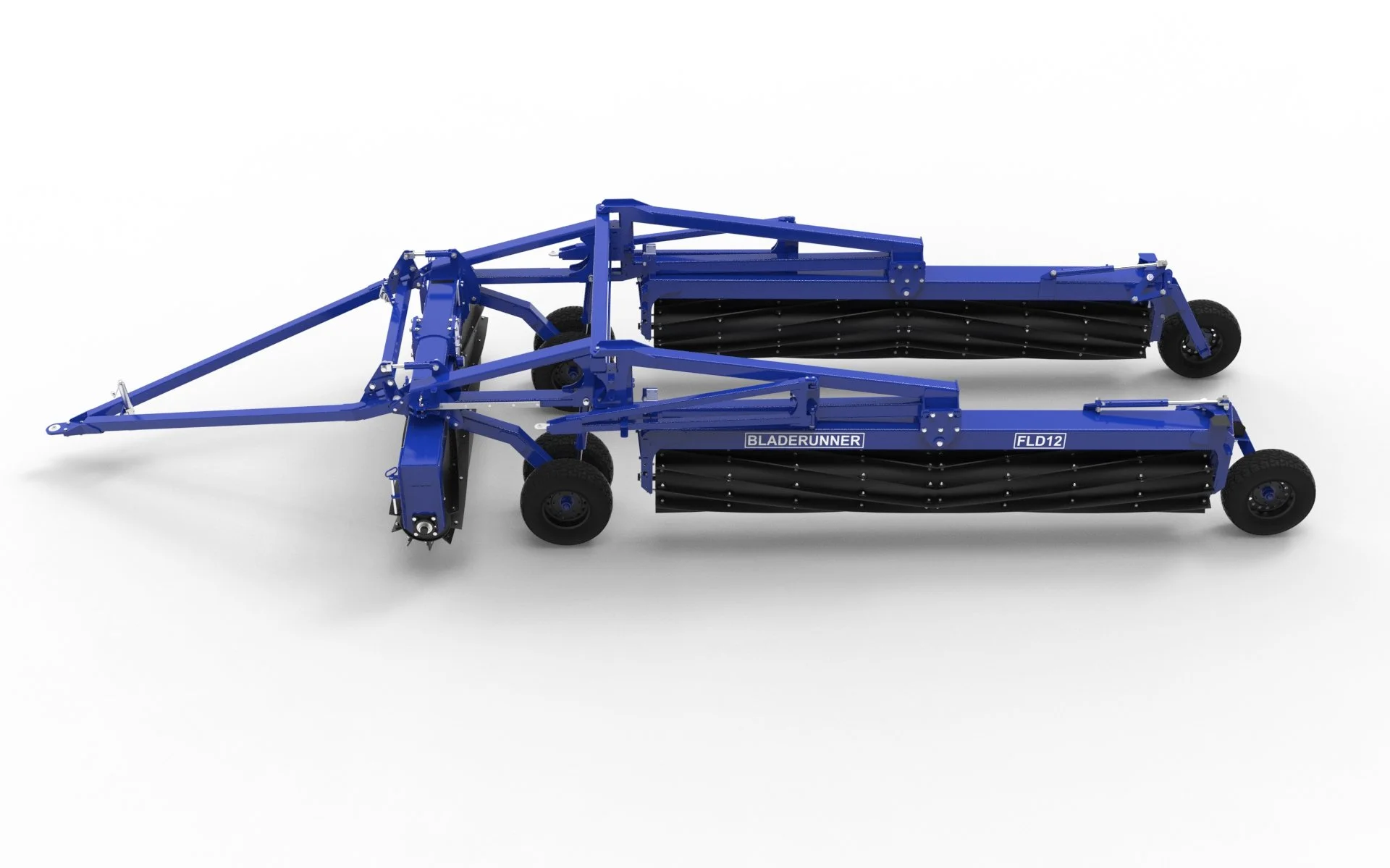

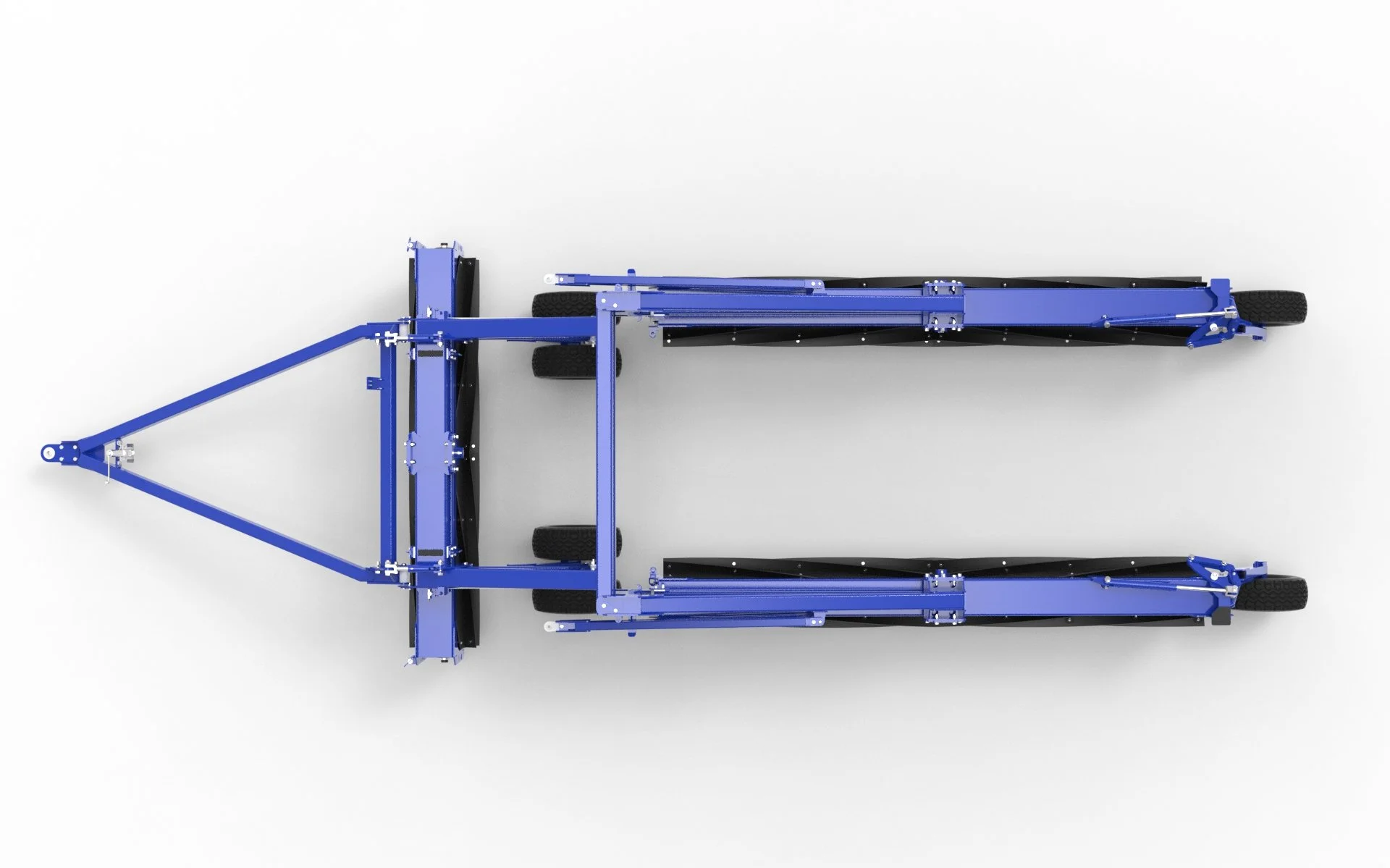

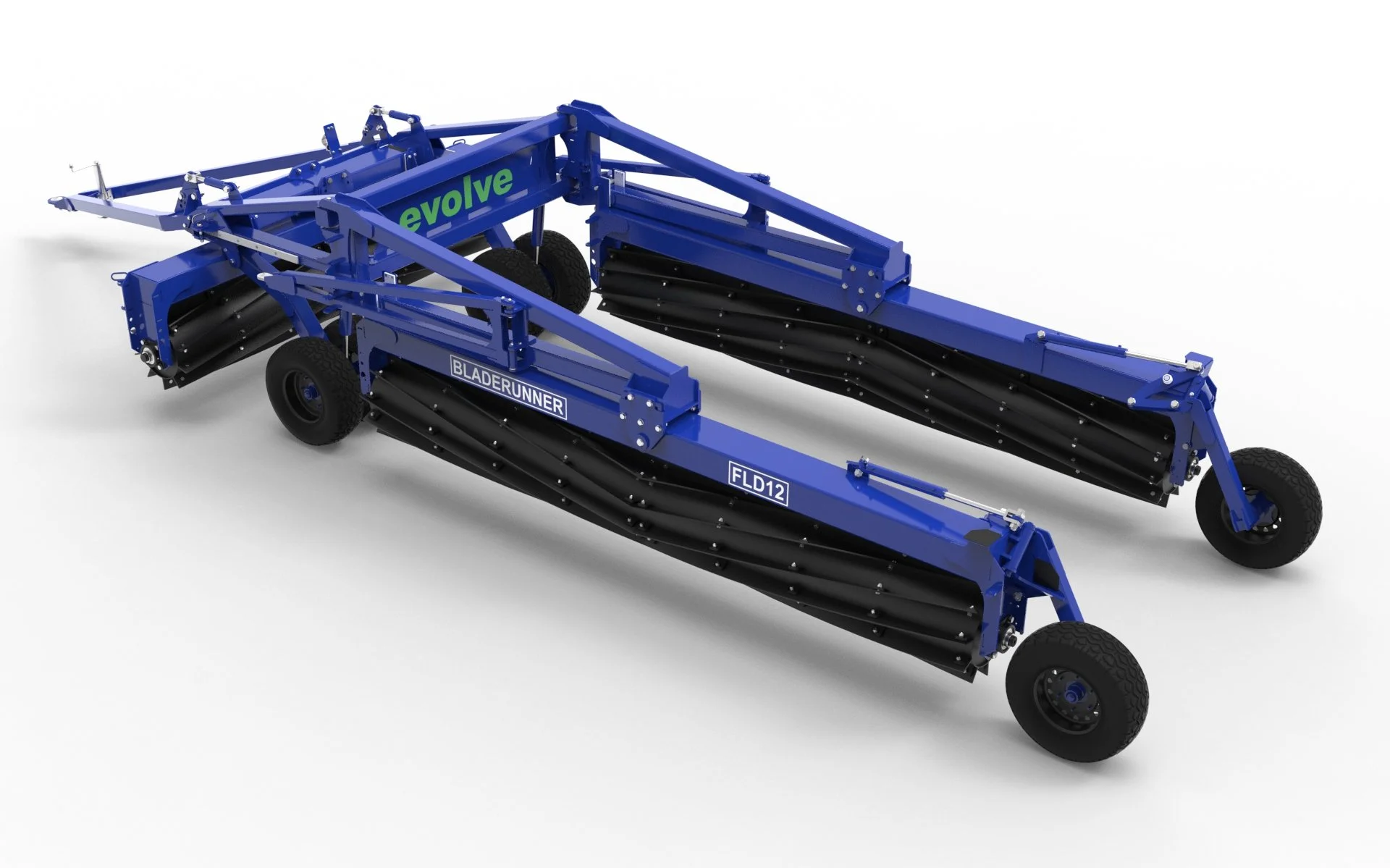

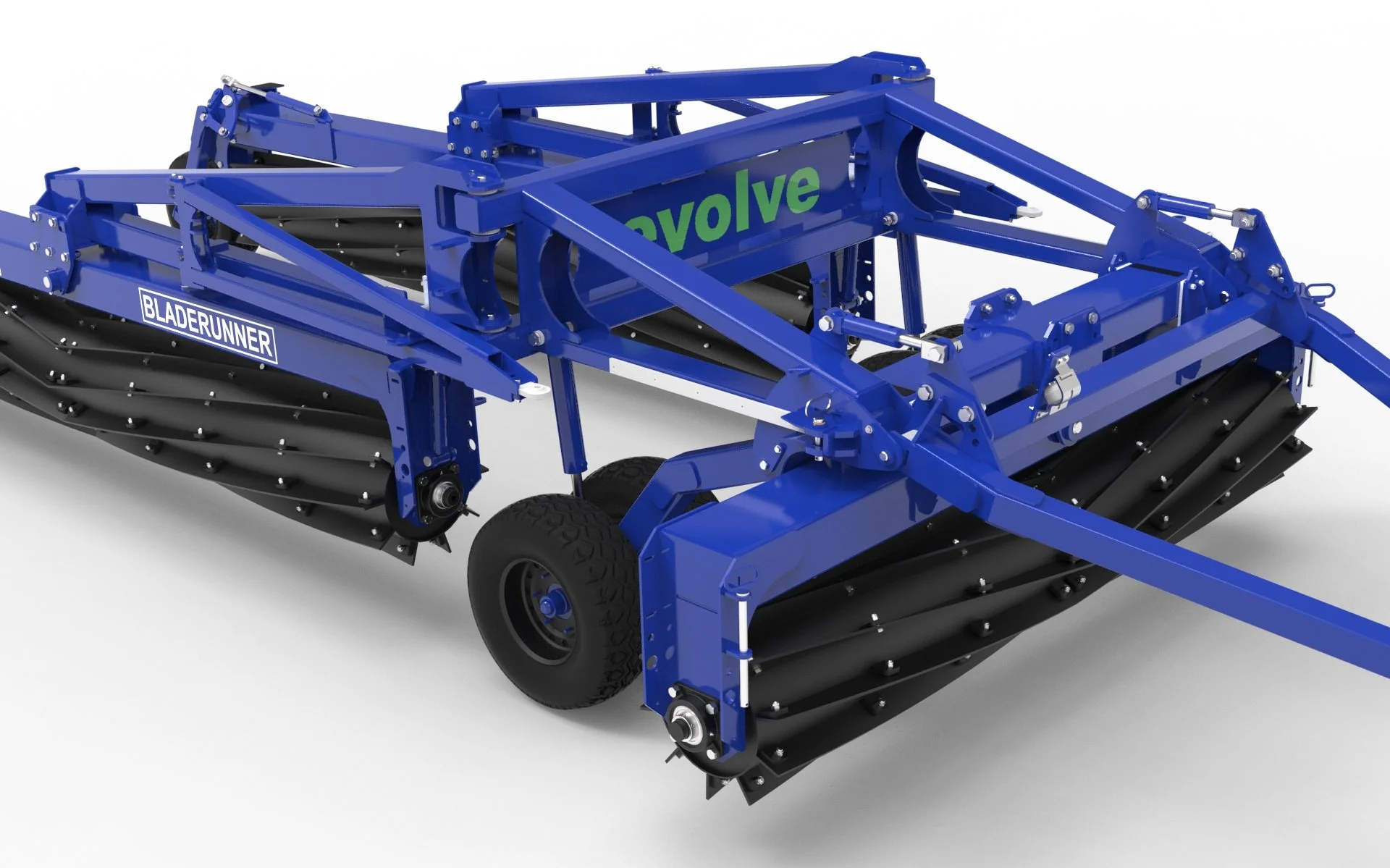

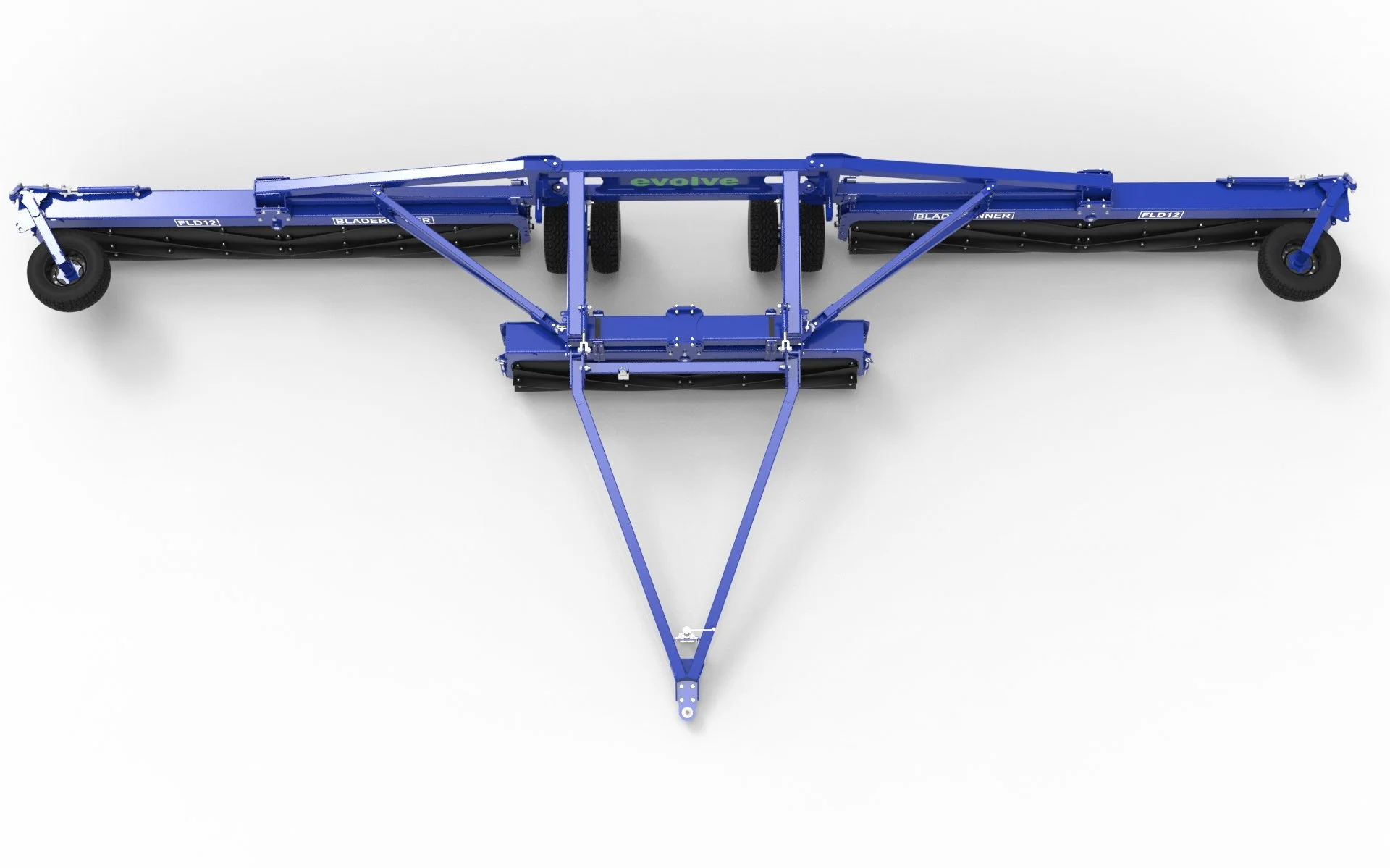

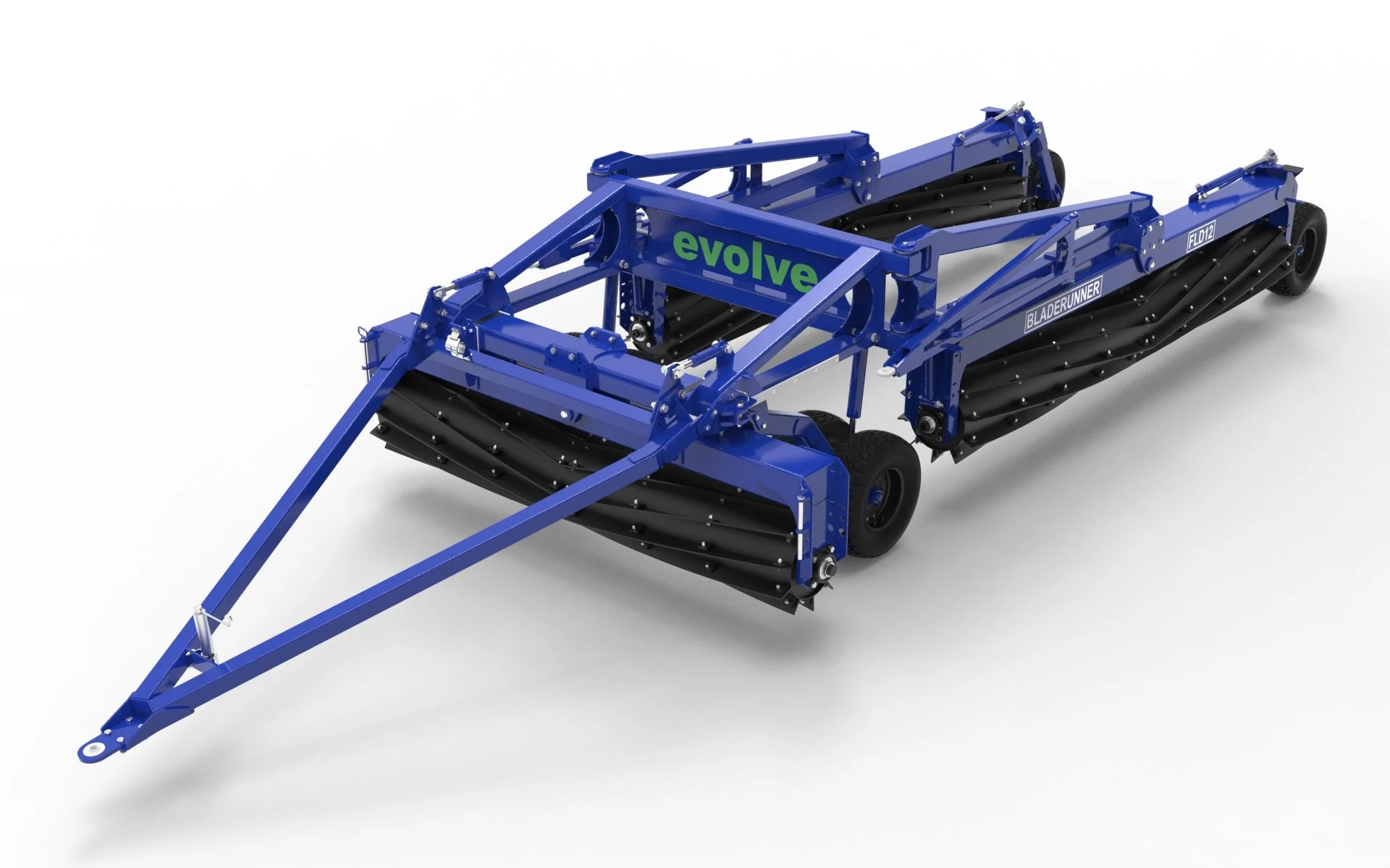

This advanced model offers an impressive 12m swath width, yet folds down to under 3.5m for easy road towing.
Tailored to meet the demands of broad-acre agricultural needs, our FLD-12 requires only 180+ horsepower to pull.
This product is made to order.
Standard delivery available Australia wide.
-
Weight and Frame Design
Weighing 8 tons, this model features carefully balanced weight distribution for exceptional manoeuvrability and adaptability across diverse terrains.Field Adaptability
Engineered to lift at field ends, enabling swift, seamless turnarounds and optimising efficiency in expansive working areas.Effortless Setup and Pack-Up
Designed for quick, hassle-free setup and pack-down, maximising productivity and minimising downtime.ll FLD-12 models feature our bolt-on blade barrel for easy maintenance and extended machine life.

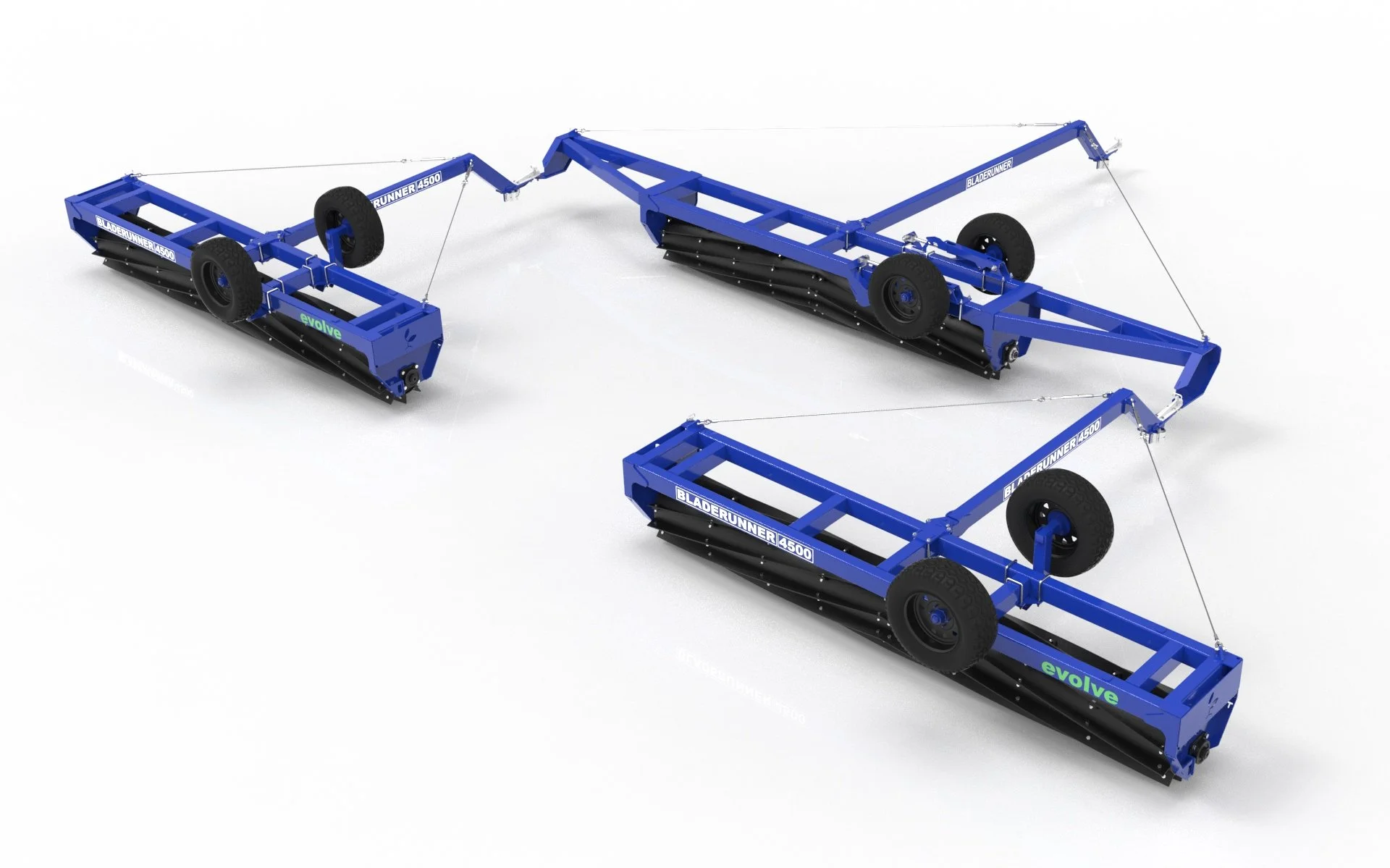

The Master of Simplicity

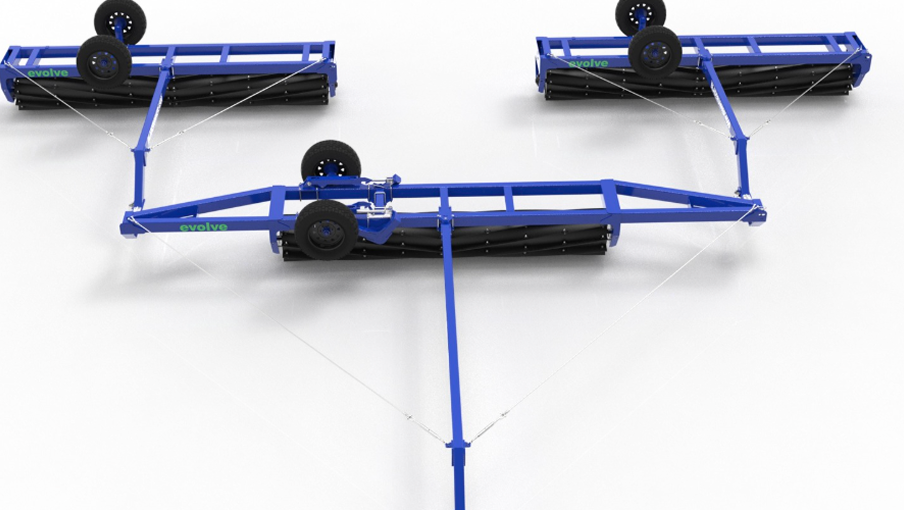

BLADERUNNER™ FORM-12
Suited to expansive or uneven terrain.

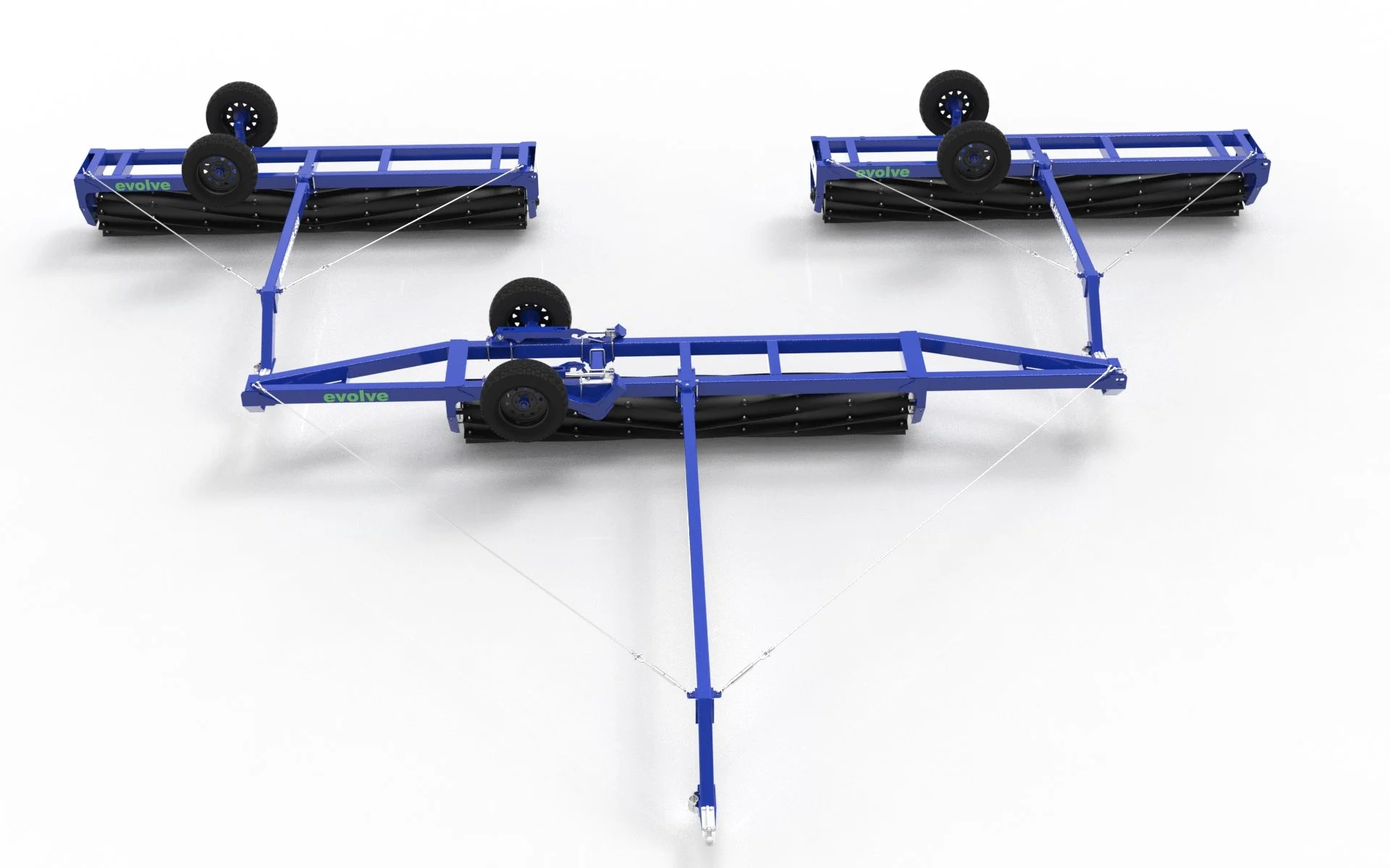

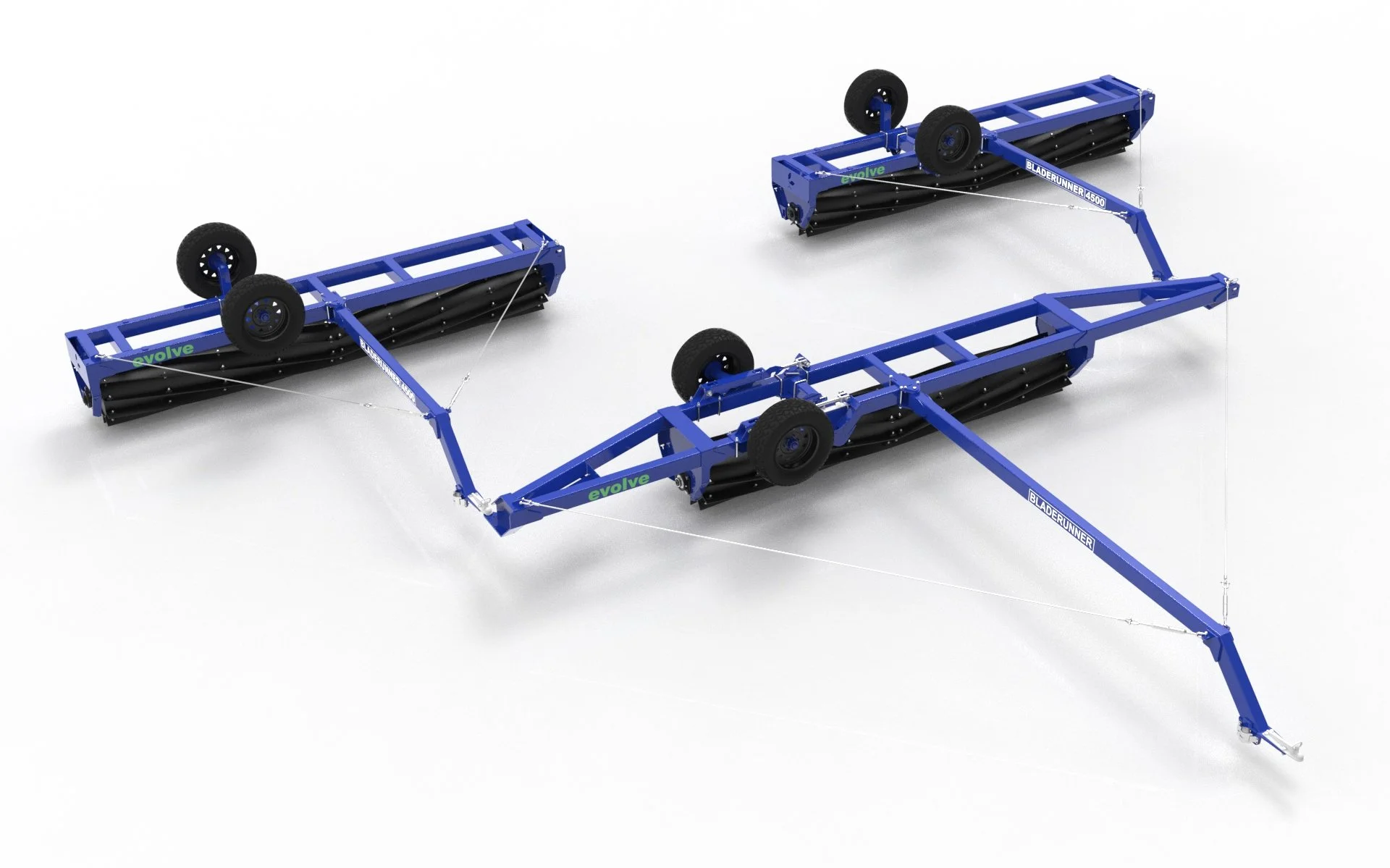

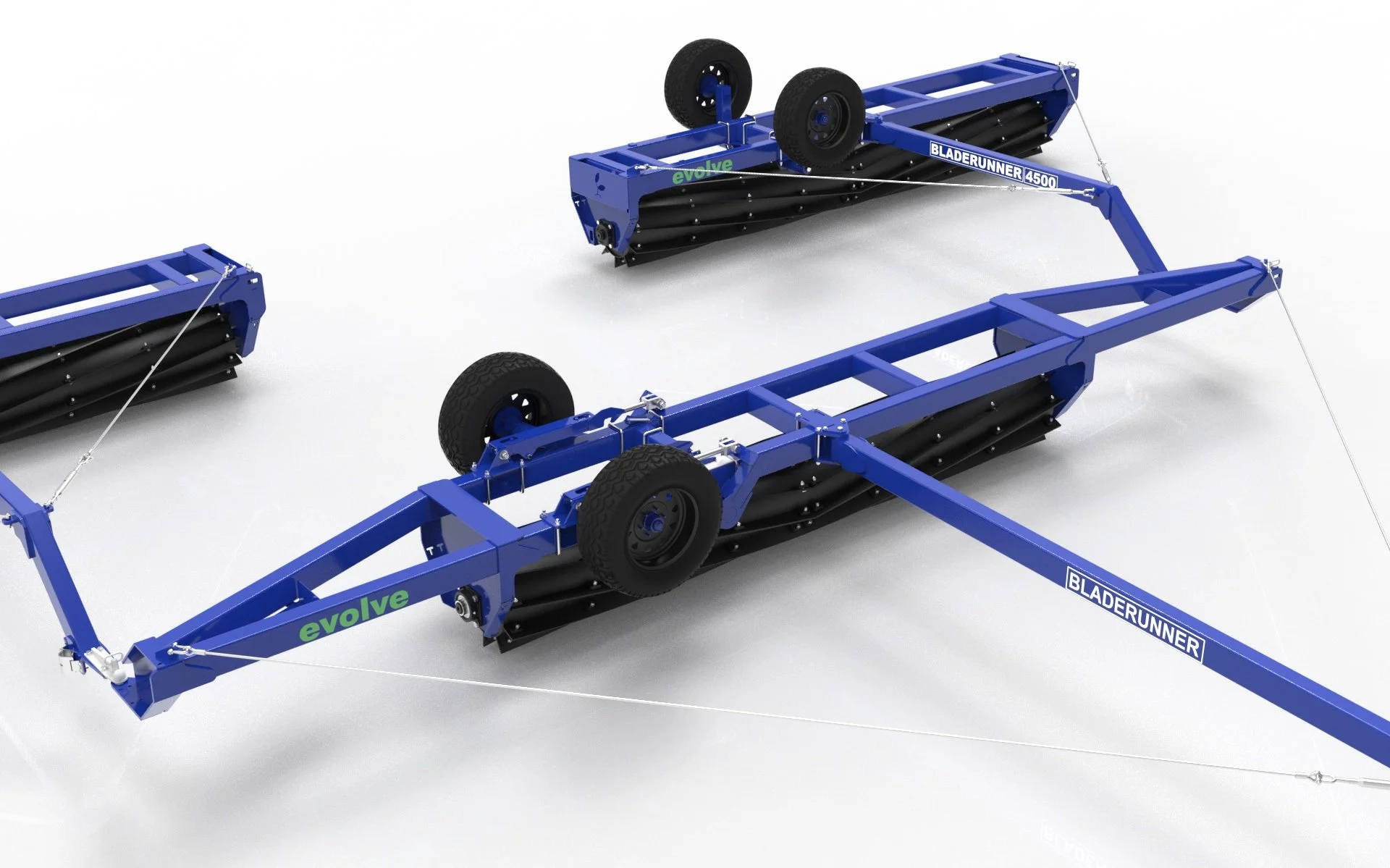

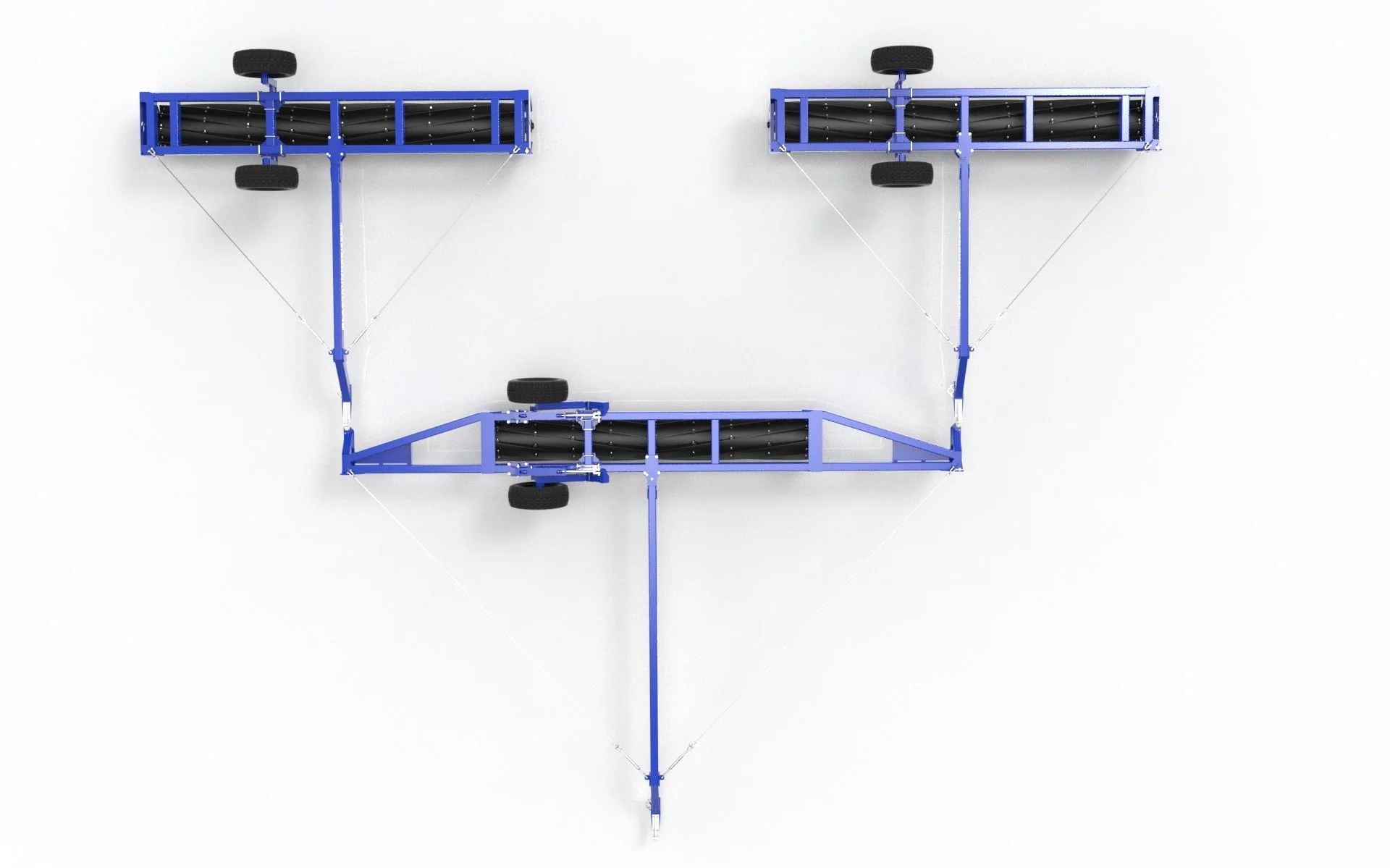

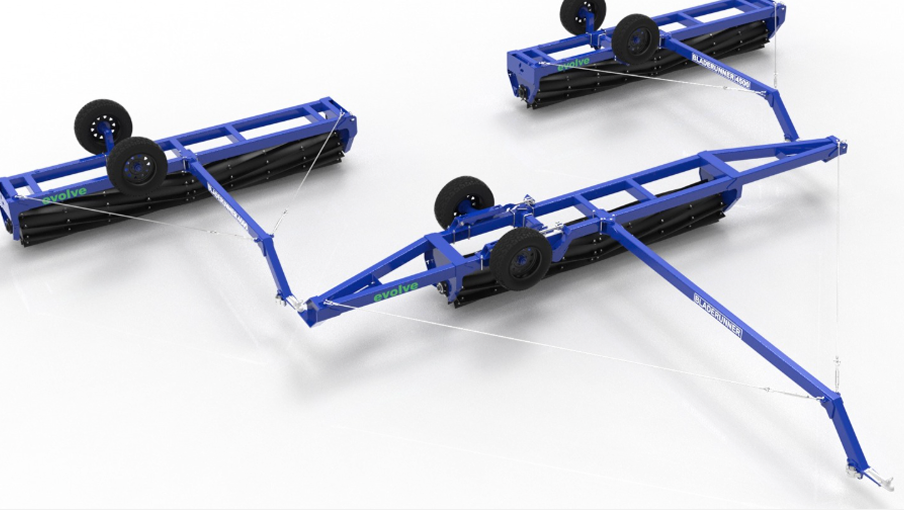

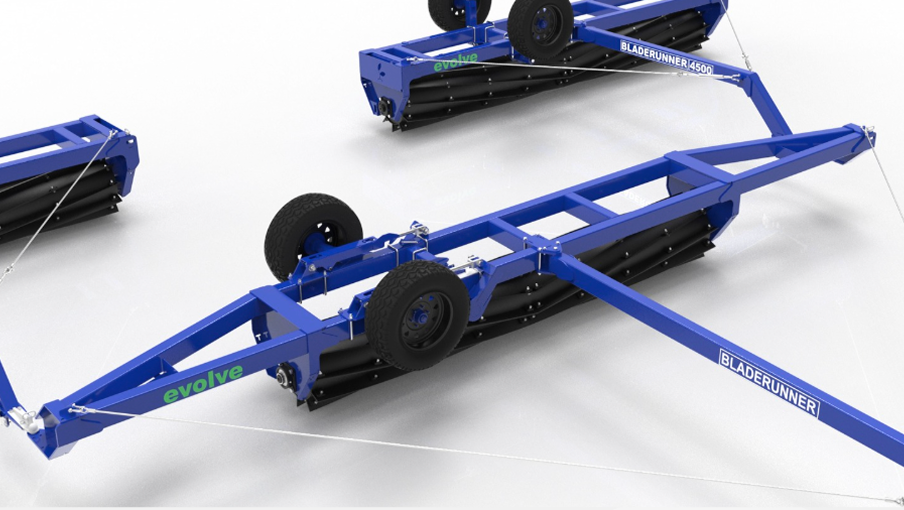

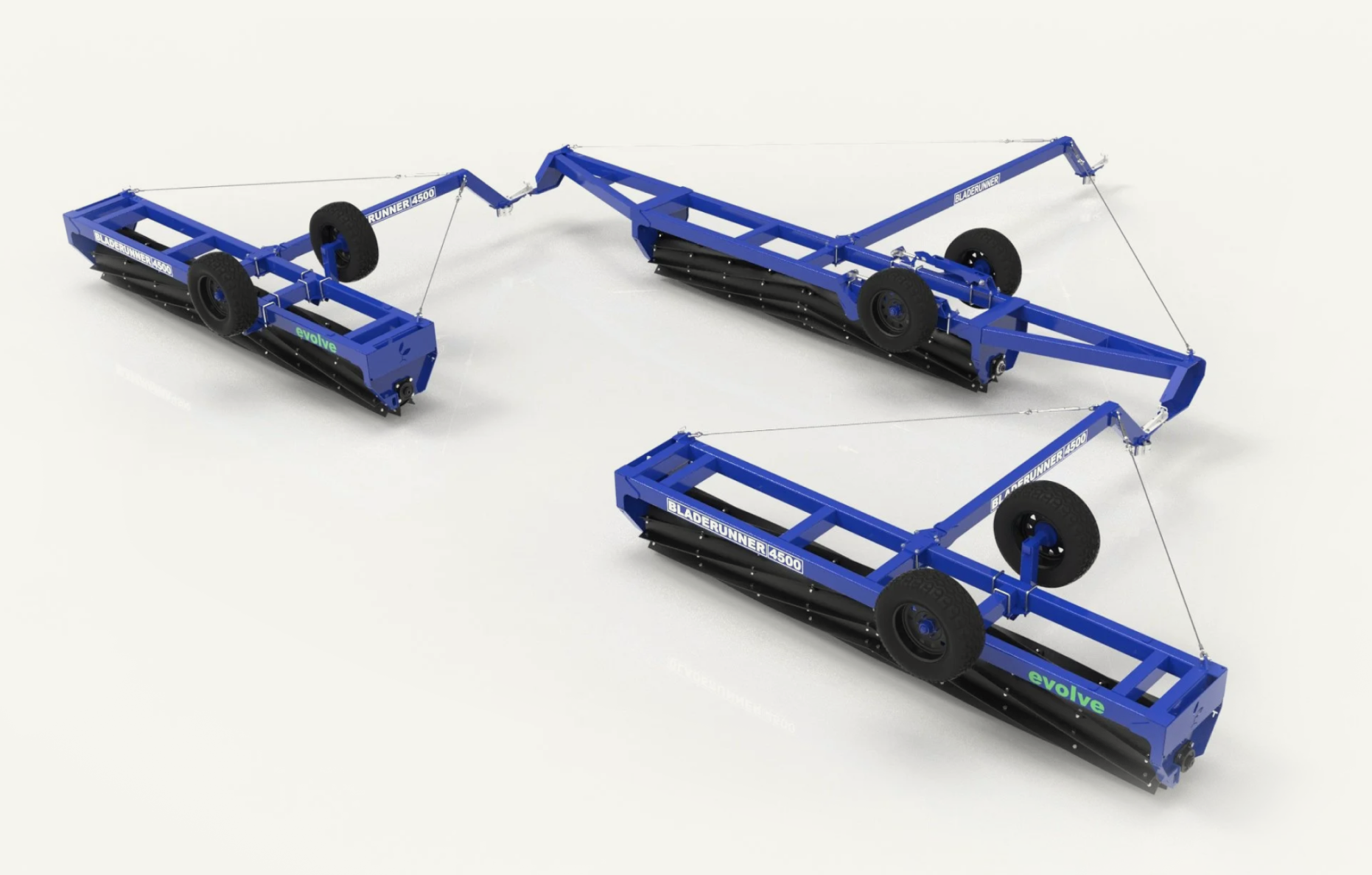

Introducing our BLADERUNNER™ Formation Series, simply putting three of our standard machines together in formation to cover larger or custom swath widths.
A leading frame with extended wings tows two trailing machines behind. These machines can be separated into three separate units that have all of the functionality of our standard machines.
Having three separate machines trailing also means that manoeuvrability is not compromised.
This product is made to order.
Standard delivery available Australia wide.
-
Larger broadacre settings
Undulating country where machines need to be able to “float” and move separately to keep contact with the ground
Areas that need larger swath widths without compromising manoeuvrability
Split frame and move from broad acre to tighter grazing areas with ease
FREQUENTLY ASKED QUESTIONS
-
Machinery and rocks don't generally mix that well in work or social situations. Smaller rocks (say the size of cricket balls) are fine. We have engineered around this problem with replaceable blades and a bisalloy blade option, however the responsibility of the wear and tear of a machine ultimately comes down to the operator and how well they know the field/paddock and what speed they are willing to go - or not go.
-
Depending on the application and how comfortable the ride in the tractor is or isn't, typical speeds for crimping, around 10km, mulching pasture; faster than 10 km. The ideal speed is the speed that matches conditions and what is doing the best job. As long as the machine looks stable and smooth and you're comfortable in the seat and you're doing a good job - go for it.
-
The 4500 a Landcruiser or similar 4WD will suffice. The 6000; 80HP or more is perfect. Formation 160hp or more is perfect. FLD-12 180-200 horsepower and 3 hydraulic remotes is ideal.
-
Great; within reason. We have tried and tested laying over and snapping woody weeds at the crown or base of the plant. As long as the plants are snapable and the trunk is within a diameter of roughly 1 inch or less then it should be effective. This can however vary from plant to plant. As a test if you can lay over, stand on and with your body weight effectively snap a woody weed or sapling then you should expect the BLADERUNNER™ to do the same thing. Young whippy seedlings can be tricky; crimp rolling may prove ineffective as they might stand back up.
-
Although plenty of our machines are used in managing grass's the best results on grasses are on long and rank grasses. Weight in the barrel will be more effective and timing may also be key for best results.
-
Yes, our machines are used in stubble management. Canola stubbles are an easy job and we offer a sharpened blade for better results. Any other stubbles that are thicker in stalk and left high our machines will eat up/ chop and lay on the ground with minimal disturbance to the soil- which is key for breaking stubbles down further. Wheat stubbles can be ropey and harder to get on the ground but if the stalk is left for natural breakdown to start occurring this will help the BLADERUNNER™ do an effective job.
-
Tussocks and grass clumps are a common problem and are becoming a more widespread problem in certain areas of Australia. The BLADERUNNER™ relies on contact from the blade with the earth with the biomass in between to be effective. If the roller is lifted one end by running over a clump of grass this will then affect the results along the whole length of the barrel. I have suggested to clients previously that the first problem that needs addressing are these clumps which are creating a vicious cycle of unproductivity. Once these clumps are addressed the management of stock grazing and utilisation of a BLADERUNNER™ together could be beneficial for creating better spread of feet, with improved paddock feed accessibility and then overall productivity.
-
You have done a lot of blade running! Our blades are replaceable and a new set can be bolted on. Typically speaking though, you shouldn't expect to be wearing blades out seasonally or really at all, especially if there is biomass in between the blades and the ground. Naturally, there will be wear and tear on blades, but this is why we offer replaceable blades which are quite inexpensive to change out.
-
Two options; One; replace it. Or, 2 take it off and get the bend out. Because of the design of the blades and how they are formed around the barrel they are very durable and typically quite hard to bend (however never say never).
-
Crimping cover crops; 10mm flat edge blade. Stubble crunching; 6mm Bisalloy sharpened. Pasture improvement; depending on area and what you want to eradicate one of our team can assist you with this.
-
Slashing and mulching are effective, but the BLADERUNNER™ differs significantly. Have you ever noticed what slashing and mulching do to your biomass? If you mulch then get a decent rain even you have probably asked yourself "where did all that biomass go?" and "why is my paddock so bare?"
Mulching disintegrates biomass and negatively impacts on your soil health and coverage.
Mulching and slashing will reset grazing paddocks to an even playing field, taking out all plants, desirable and otherwise, therefore giving all plants the same opportunity to grow back. This can influence reshooting of the problematic weeds that were causing the problems, concern and under productivity in the first place. The long of the short; use your biomass don't loose your biomass!
Blade running requires less horsepower, parts, consumables, and running costs compared to mulching or slashing.
-
Obviously the less the better, who wants to be sitting in the tractor all day every day? If you are one of these people who do enjoy this - apologies - go for it, but what we are trying to influence with our machinery is the idea of a new management strategy to go with it.
Using your stock, their feet and their natural fertiliser to do the heavy lifting for you, is key to improving the productivity of your country. So lets say for example you are wanting better turnover and productivity of your country, there is a lot of feed in front of you that is becoming rank and under utilised and your stock are not interested in this feed as it lacks tastiness, protein and access.
You can use the BLADERUNNER™ to give better accessibility of your country back to your stock to spread your numbers over your grazing areas, trample and then turn over this unproductive feed to turn your country back into production. This strategy can be done both before pushing stock into a paddock, or after to reset and give your paddock the best opportunity for production moving forward. We encourage our clients to think of the benefits, utilize the machine, look at the results and then adjust their strategy around this. Same goes with any pasture management strategy, whether it's eradicating weeds etc. What we want to do is maximise production with minimal expenditure and effort - and if we do this organically then this will help us with the best results for the future and more money in the hip pocket to boot.
-
We do not hire machines out anymore. There is however, huge potential and a gigantic gap in the market so feel free to do so yourself!
-
Yes! We offer delivery to your doorstep Australia wide at competitive rates.
BUILT FOR YOU
Built to suit your farm
At Evolve, we strive to deliver exactly what our clients need, we understand that no two enterprises are the same.
We custom build to any size and configuration to meet your requirements. Whether you have flat, hilly, rocky or undulating country, need linkage fitting or tow behind. We are constantly working with clients on different designs to fit the mould of their farm and program. We are more than happy to discuss your requirements, obligation free.
